Dixon® N4F3 N4F3

Dixon® N4F3

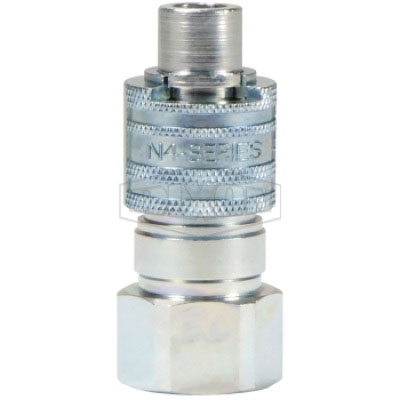

Dixon® Dix-Lock™ N Series Trivalent Chrome-Plated Steel Pneumatic Interchange Plug, 1/2 in Quick Disconnect x 3/8 in FNPTF

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: N4F3
  • MPN: N4F3
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Dix-Lock™ Pneumatic Interchange Plug, Series: N, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/8 in, Hex Size: 1-3/16 in, 500 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 2.92 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/2 in
Connection Size 2      :      3/8 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimensions      :      2.92 in L
Finish      :      Trivalent Chrome-Plated
Gender 2      :      Female
Hex Size      :      1-3/16 in
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      500 psi
Series      :      N
Shape      :      Plug
Sub Brand      :      Dix-Lock™
Temperature Rating      :      -40 to 250 deg F
  • Machined components are manufactured using solid bar stock
  • Stainless steel retaining rings and springs maximize corrosion resistance and extend service life
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Coupling sleeve constructed of cast zinc steel
  • Conforms to MIL-C-3486 and A-A-50431A standards
  • Bowes interchange bayonet style
  • Interchangeable with Bowes 51000 Series, National Series 'B', MacDonald quick action, Campbell single-lock

Safety Notes: It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.

  • Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
  • To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_3NCS4_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_N4F3_SS.pdf
