Dixon® DL20 DL20

Dixon® DL20

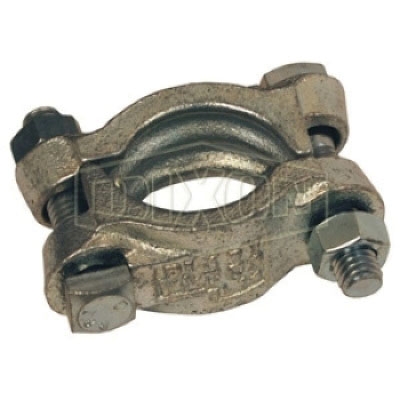

Dixon® DL20 Plated Malleable Iron 2-Bolt Clamp, 1-48/64 in, 3-9/16 in W, 1-1/16 in Thick

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: DL20
  • MPN: DL20
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® 2-Bolt Clamp, 2-3/64 in Maximum Clamp Diameter, 1-48/64 in Minimum Clamp Diameter, Locking Style: Bolt, Torque Rating: 27 ft-lb, Material Construction: Iron, Finish: Plated, 2-1/32 in Length, 3-9/16 in Width, 1-1/16 in Thickness

California residents see Prop 65 WARNINGS

Finish      :      Plated
Length      :      2-1/32 in
Locking Style      :      Bolt
Material      :      Malleable Iron
Material Construction      :      Iron
Maximum Clamp Diameter      :      2-3/64 in
Minimum Clamp Diameter      :      1-48/64 in
Product Type      :      Bolt Clamp
Thickness      :      1-1/16 in
Torque Rating      :      27 ft-lb
Width      :      3-9/16 in
  • Inner surface has dual gripping ridges
  • Bolt lugs are reinforced to prevent bending out of alignment

Safety Notes: The use of lubricant on bolts will adversely effect clamp performance.

  • Consult Dixon® when using double bolt clamps on helical wire hose.
  • Measure hose OD accurately before ordering clamps.
  • Torque values for clamps are based on dry bolts.
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_769_SS.pdf
    • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_DL20_TD.pdf
