Dixon® 3EF3-S

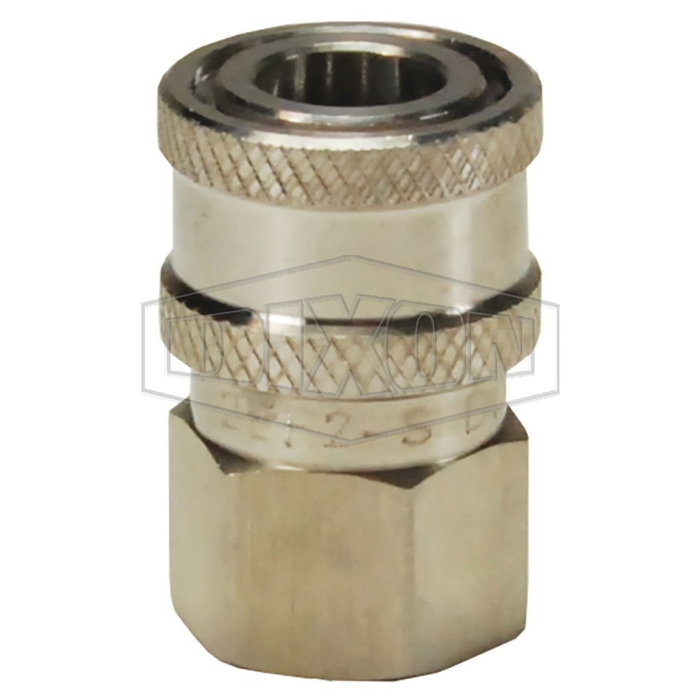

Dixon® E Series 303 Stainless Steel Straight Through Interchange Coupler, 3/8 in Quick Disconnect x 3/8 in FNPTF

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: 3EF3-S
  • MPN: 3EF3-S
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
  1. pin-int

Dixon® Straight Through Interchange Coupler, Series: E, Connection Type 1: Quick Disconnect, Connection Size 1: 3/8 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18, Hex Size: 1 in, 5500 psi, Material Construction: 303 Stainless Steel, Dimensions: 1.6 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      3/8 in
Connection Size 2      :      3/8 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimensions      :      1.6 in L
Gender 2      :      Female
Hex Size      :      1 in
Material      :      Stainless Steel
Material Construction      :      303 Stainless Steel
Pressure Rating      :      5500 psi
Series      :      E
Shape      :      Coupler
Temperature Rating      :      -40 to 250 deg F
Thread Size 2      :      3/8-18
  • Straight-through pressure-wash interchange
  • Interchanges with Parker ST Series, Foster FST Series, Tomco Series ST, Hansen ST Series
  • These couplers have no internal valves, providing maximum flow with minimum pressure drop
  • Machined components are manufactured using 303 stainless steel bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
  • Nitrile (Buna-N) seals are standard

Safety Notes: Do not disconnect with pressure in line.

  • Dixon® cannot assume liability for misapplication of products resulting in equipment down-time, lost production, property damage and/or personal injury including death.
    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_10EF10-S_CAT.pdf
