Dixon® 2FM2-S C21-SS

Dixon® 2FM2-S

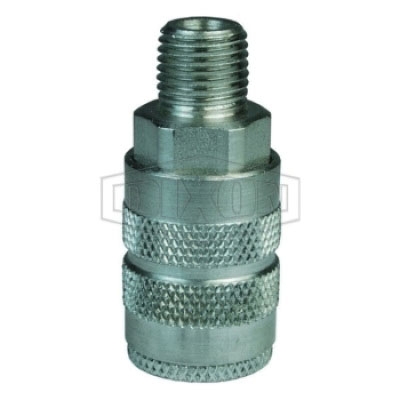

Dixon® F Series 303 Stainless Steel Pneumatic Manual Industrial Interchange Coupler, 1/4 in Quick Disconnect x 1/4 in MNPTF

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: C21-SS
  • MPN: 2FM2-S
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Pneumatic Manual Industrial Interchange Coupler, Series: F, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 3/4 in, Material Construction: 303 Stainless Steel, Dimensions: 0.88 in OD x 2.04 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimensions      :      0.88 in OD x 2.04 in L
Gender 2      :      Male
Hex Size      :      3/4 in
Material      :      Stainless Steel
Material Construction      :      303 Stainless Steel
Series      :      F
Shape      :      Coupler
Temperature Rating      :      -40 to 250 deg F
Thread Size 2      :      1/4-18
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
  • Nitrile (Buna-N) seals are standard
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Steel sleeve and steel tubular valve
  • Foster 3, 4, 5 and 6 series
  • Parker 20 Series manual interchange
  • Hansen 1000, 400 and 500

Safety Notes: It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.

  • Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
  • To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2FS3S_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_4DM6B_SS.pdf
