Dixon® FFS404 FFS404

Dixon® FFS404

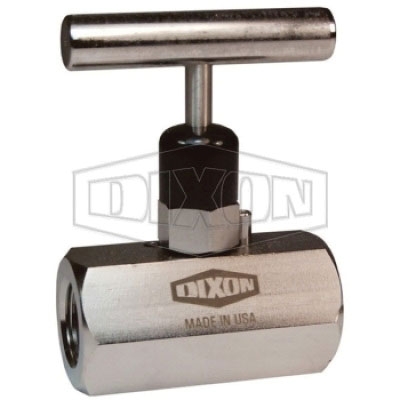

Dixon® FFS404 316 Stainless Steel Mini Needle Valve, 1/2 in FPT, 10000 psi

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: FFS404
  • MPN: FFS404
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Mini Needle Valve, Nominal Size: 1/2 in, Connection Type: FPT, Actuator Type: T-Handle, Material Construction: 316 Stainless Steel, 316 Stainless Steel Trim, FKM Seal, Flow Coefficient: 0.44 Cv, 10000 psi

California residents see Prop 65 WARNINGS

Actuator Type      :      T-Handle
Connection Type      :      FPT
Flow Coefficient      :      0.44 Cv
Material      :      Stainless Steel
Material Construction      :      316 Stainless Steel
Nominal Size      :      1/2 in
Pressure Rating      :      10000 psi
Product Type      :      Needle Valve
Seal Material      :      FKM
Trim Material      :      316 Stainless Steel
  • A FKM O-ring seal and a PTFE back-up ring below the threads protects the mini valve from corrosion and galling
  • Stem threads are rolled for strength and ease of operation
  • Metal-to-metal hard seat design is 100% helium leak tested to 1 x 10-4 ml/s at 200 psi
  • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_FFS102_SS.pdf
