Dixon® GDF12 GDF12

Dixon® GDF12

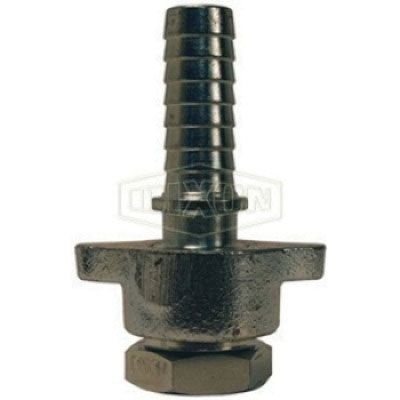

Dixon® GDF12 Plated Iron/Steel Heavy-Duty Ground Joint Air Hammer Complete Coupling with Spud, 1 in Hose x 1 in FNPT

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: GDF12
  • MPN: GDF12
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • Sold As: 1/PK
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Heavy-Duty Ground Joint Air Hammer Complete Coupling with Spud, Connection Type 1: Hose, Connection Size 1: 1 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1 in, Material Construction: Iron/Steel, Finish: Plated, Dimensions: 3-5/8 in Dia x 5-13/32 in L, For Use With: Boss™ Clamps

California residents see Prop 65 WARNINGS

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type 1      :      Hose
Connection Type 2      :      NPT
Dimensions      :      3-5/8 in Dia x 5-13/32 in L
Finish      :      Plated
For Use With      :      Boss™ Clamps
Gender 2      :      Female
Material      :      Malleable Iron
Material Construction      :      Iron/Steel
Shape      :      Ground Joint Coupling
  • Rounded steel head of stem fits concave inserts in spuds for superior sealing
  • Metal-to-metal copper seat
  • Compatible with air hammer parts such as GBB11, DLB12, GDL13, GDL10, GDL25

Safety Notes: Worn-out hose couplings can be dangerous.

  • They should be checked regularly and replace when necessary.
  • Each coupling user should review applications and add safety devices where indicated.
    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_60NAB3_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_GBA45_SS.pdf
    • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_GDF12_TD.pdf
