Dixon® H2F2-B H2F2-B

Dixon® H2F2-B

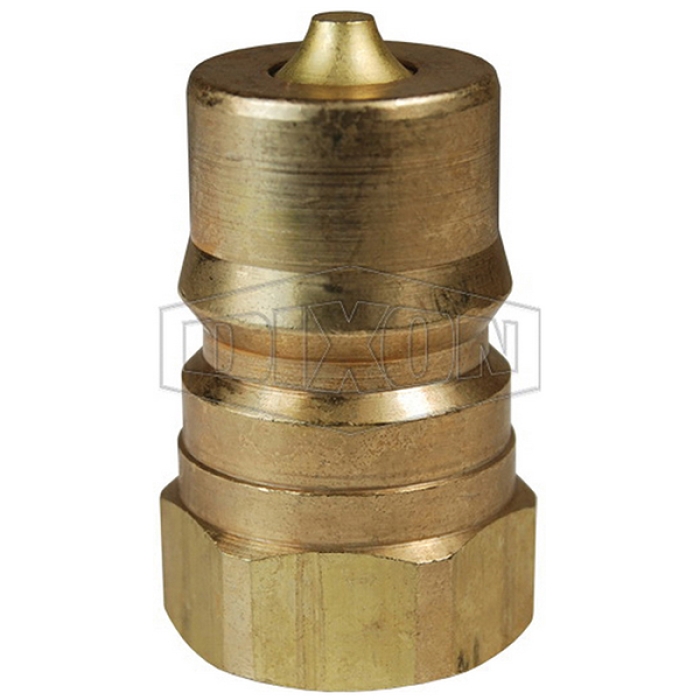

Dixon® H Series Brass ISO-B Interchange Plug, 1/4 in Quick Disconnect x 1/4 in FNPTF

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: H2F2-B
  • MPN: H2F2-B
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® ISO-B Interchange Plug, Series: H, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 3/4 in, 3000 psi, Material Construction: Brass, Dimensions: 0.83 in OD x 1.55 in L, Dimension Standards: ISO 7241 Series B, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimension Standards      :      ISO 7241 Series B
Dimensions      :      0.83 in OD x 1.55 in L
Gender 2      :      Female
Hex Size      :      3/4 in
Industry Category      :      Hydrulic Quick Disconnects
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      3000 psi
Series      :      H
Shape      :      Plug
Temperature Rating      :      -40 to 250 deg F
Thread Size 2      :      1/4-18
  • Poppet style shut-off valves
  • Designed to prevent fluid loss when disconnected
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
  • Interchangeable with Parker-Hannifin 60 Series, Snap-Tite 72 Series, Hansen HK Series, Faster HNV Series, Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_H8DC-A_CAT.pdf
