Dixon® HS6F6-B B17-600S

Dixon® HS6F6-B

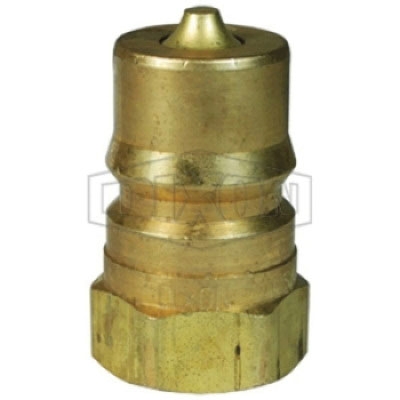

Dixon® HS Series Brass ISO-B Steam Interchange Plug, 3/4 in Quick Disconnect x 3/4 in FNPTF

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: B17-600S
  • MPN: HS6F6-B
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® ISO-B Steam Interchange Plug, Series: HS, Connection Type 1: Quick Disconnect, Connection Size 1: 3/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/4 in, Thread Size 2: 3/4-14, Hex Size: 1-5/16 in, Material Construction: Brass, Dimensions: 1.44 in OD x 2.43 in L, -70 to 400 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      3/4 in
Connection Size 2      :      3/4 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimensions      :      1.44 in OD x 2.43 in L
Gender 2      :      Female
Hex Size      :      1-5/16 in
Material      :      Brass
Material Construction      :      Brass
Series      :      HS
Shape      :      Plug
Temperature Rating      :      -70 to 400 deg F
Thread Size 2      :      3/4-14
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
  • Special high-temperature EPDM O-rings designed for steam service
  • Interchangeable to ISO 7241 Series B
  • Parker 60 Series steam couplings

Applications: For steam applications

Safety Notes: Maximum working pressure has been calculated using standard saturated steam at 194 deg C for general-purpose continuous service.

  • For advanced operating pressure or super heated steam applications, contact Dixon® for further information.
  • Do not disconnect under pressure.
    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_6HSF6B_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_HS6F6B_SS.pdf
