Dixon® IXSE32 IXSE32

Dixon® IXSE32

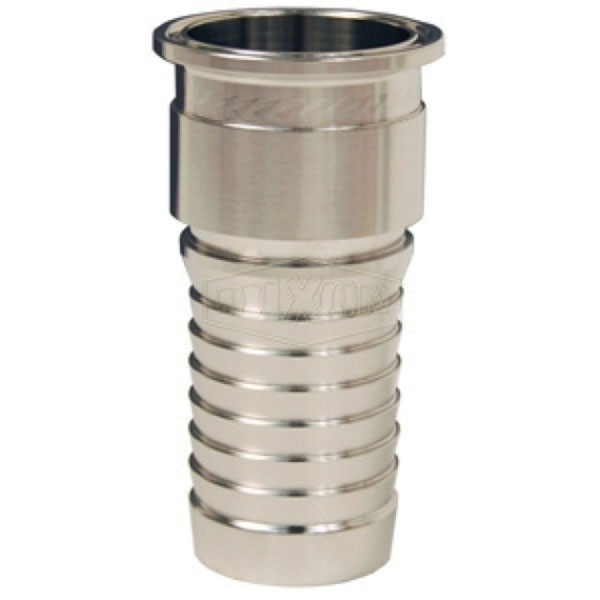

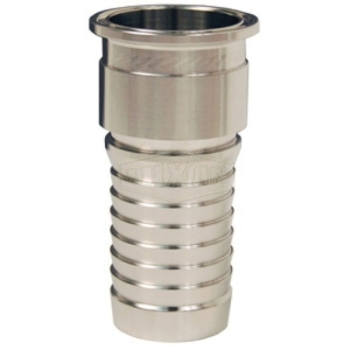

Dixon® IXSE32 304 Stainless Steel Internal Expansion Sanitary Style Stem, 2 in Hose x 2 in Clamp

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: IXSE32
  • MPN: IXSE32
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Internal Expansion Sanitary Style Stem, Connection Type 1: Hose, Connection Size 1: 2 in, Connection Type 2: Clamp, Connection Size 2: 2 in, Material Construction: 304 Stainless Steel, 2-1/2 in Diameter, 4-5/16 in Length

California residents see Prop 65 WARNINGS

Connection Size 1      :      2 in
Connection Size 2      :      2 in
Connection Type 1      :      Hose
Connection Type 2      :      Clamp
Diameter      :      2-1/2 in
Length      :      4-5/16 in
Material      :      Stainless Steel
Material Construction      :      304 Stainless Steel
Shape      :      Stem

Safety Notes: Flow Chief internal expansion (IX) fittings are only to be used with Flow Chief stainless steel ferrules.

  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.
  • Consult Dixon® for recommendations on usage.
  • Strict adherence to ferrule OD range (internally expanded) for each hose end to be assembled is essential for satisfactory performance.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting.
  • The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material.
  • Compatibility of ferrule material with the environment in which it will be used is recommended.
  • Consult the compatibility chart or the Dixon® factory for material compatibility.
  • For applications other than the ones list, please consult Dixon.

    Applications: For food, dairy and beverage industries, recommended where increased flow capacity is important

    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_H5076BU_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_IXH32_SS.pdf
    • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_IXSE32_TD.pdf
