Dixon® AST20 AST20

Dixon® AST20

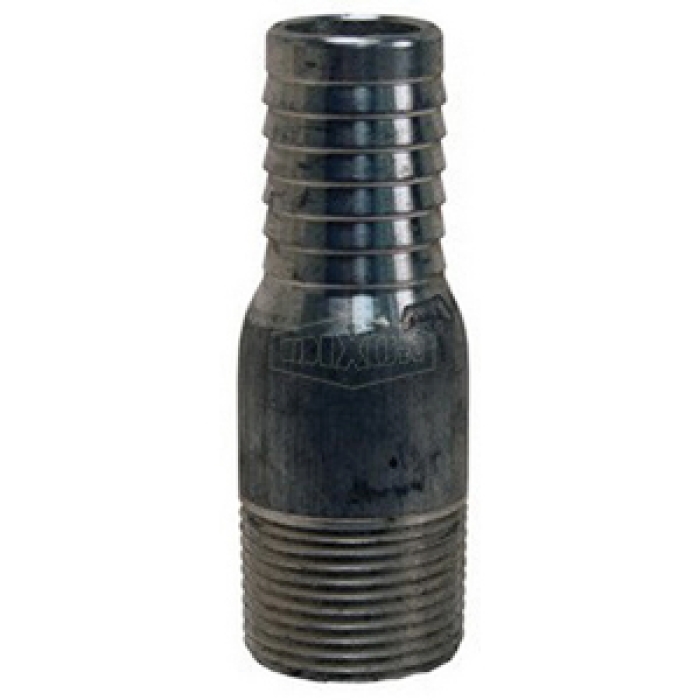

Dixon® King™ AST20 Aluminum Combination Nipple, 1-1/2 in Hose Barb x 1-1/2 in MNPT

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: AST20
  • MPN: AST20
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® King™ Combination Nipple, Connection Type 1: Hose Barb, Connection Size 1: 1-1/2 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1-1/2 in, Material Construction: Aluminum, 1-29/32 in Diameter, 4-5/32 in Length

California residents see Prop 65 WARNINGS

Connection Size 1      :      1-1/2 in
Connection Size 2      :      1-1/2 in
Connection Type 1      :      Hose Barb
Connection Type 2      :      NPT
Diameter      :      1-29/32 in
Gender 2      :      Male
Length      :      4-5/32 in
Material      :      Aluminum
Material Construction      :      Aluminum
Shape      :      Nipple
Sub Brand      :      King™
  • NPT threaded end no knurl

Safety Notes: King combination nipples are not recommended for steam.

  • The working pressure may vary with the construction of the hose, the type of clamping system used and the application. Consult Dixon® for recommendations.
  • In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement.
  • For additional information and detailed instructions on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.
  • Not for compressible products such as air or nitrogen.

    Applications: For low-pressure discharge and suction service for compatible liquids

    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_MA150_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_AST1_SS.pdf
    • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_AST20_TD.pdf
