Dixon® CF200-6CS CF200-6CS

Dixon® CF200-6CS

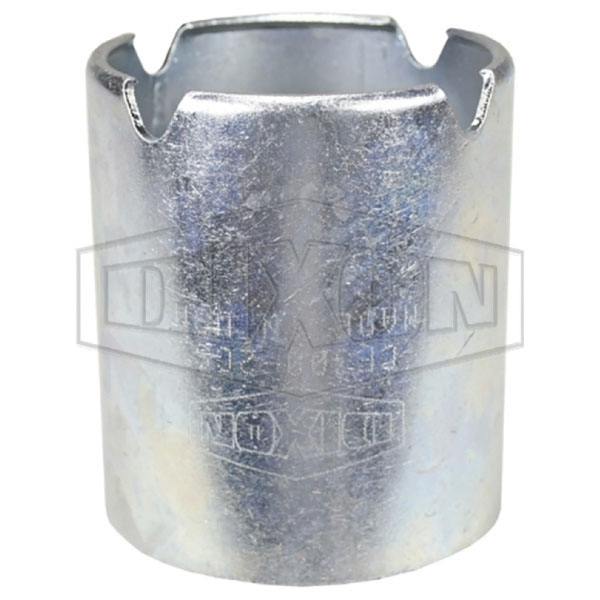

Dixon® King Crimp™ CF200-6CS Carbon Steel Ferrule, 2 in, 2-5/8 in ID

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: CF200-6CS
  • MPN: CF200-6CS
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® King Crimp™ Ferrule, Nominal Size: 2 in, 2-5/8 in ID, 2-33/64 - 2-36/64 in OD, 0.062 in Thick Wall, 3-1/8 in Length, End Style: Crimp, 250/300 psi, Material Construction: Carbon Steel, For Use With: Crimp Style Shanks

California residents see Prop 65 WARNINGS

End Style      :      Crimp
For Use With      :      Crimp Style Shanks
Inside Diameter      :      2-5/8 in
Length      :      3-1/8 in
Material      :      Steel
Material Construction      :      Carbon Steel
Nominal Size      :      2 in
Outside Diameter      :      2-33/64 - 2-36/64 in
Pressure Rating      :      250/300 psi
Shape      :      Ferrule
Sub Brand      :      King Crimp™
Wall Thickness      :      0.062 in

Safety Notes: Only use the crimp style shanks with the crimp style sleeves and ferrules.

  • Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon® products.
  • Pressure rating given at 70 deg F, consult Dixon® for pressure rating at elevated temperatures.
    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_H5076BU_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_CF1007SS_SS.pdf
    • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_CF2006CS_TD.pdf
