Dixon® STV20CS STV20CS

Dixon® STV20CS

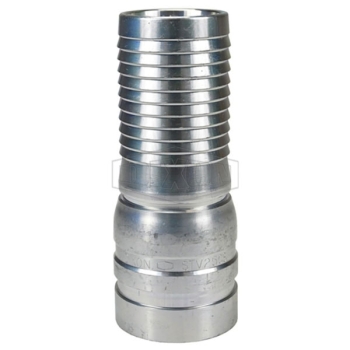

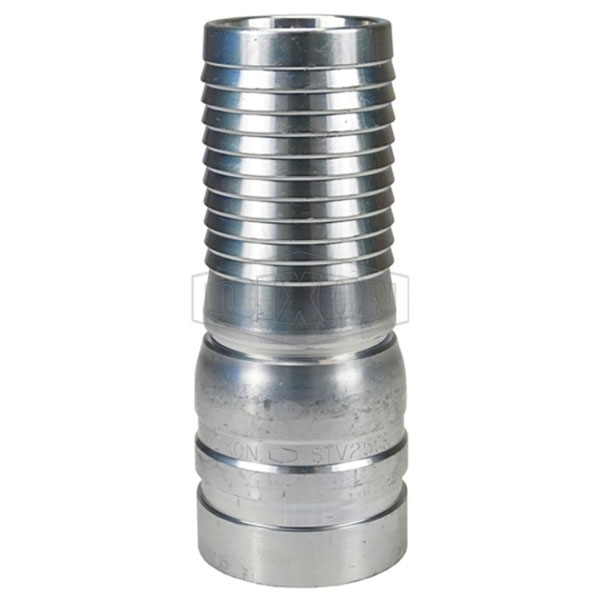

Dixon® King Crimp™ STV20CS Plated Schedule 80 Carbon Steel Combination Nipple, 1-1/2 in Hose x 1-1/2 in Grooved

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: STV20CS
  • MPN: STV20CS
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® King Crimp™ Combination Nipple, Connection Type 1: Hose, Connection Size 1: 1-1/2 in, Connection Type 2: Grooved, Connection Size 2: 1-1/2 in, Material Construction: Schedule 80 Carbon Steel, Finish: Plated, 1-29/32 in Diameter, 5-1/32 in Length, For Use With: King Crimp™ Style Sleeves, Ferrules

California residents see Prop 65 WARNINGS

Connection Size 1      :      1-1/2 in
Connection Size 2      :      1-1/2 in
Connection Type 1      :      Hose
Connection Type 2      :      Grooved
Diameter      :      1-29/32 in
Finish      :      Plated
For Use With      :      King Crimp™ Style Sleeves, Ferrules
Length      :      5-1/32 in
Material      :      Steel
Material Construction      :      Schedule 80 Carbon Steel
Shape      :      Nipple
Sub Brand      :      King Crimp™
  • There are two grooves on the crimp style King Combination nipples
  • The second groove is the roll stamp groove which has the part number and 'call Dixon®' stamped on it
  • This groove is a smooth concentric groove so that the stamp can be legible

Safety Notes: Only use the crimp style shanks with the crimp style sleeves and ferrules.

  • Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon® products.
    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_10WSDPA_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_RSTV25CS_SS.pdf
    • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_STV20CS_TD.pdf
