Dixon® RST1 RST1

Dixon® RST1

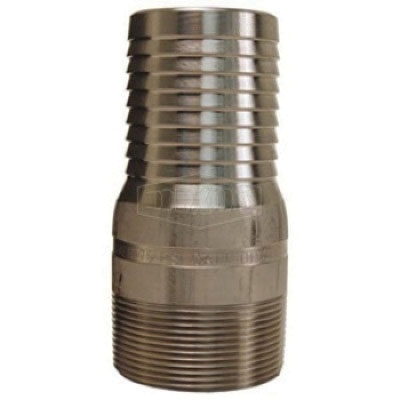

Dixon® King™ RST1 316 Stainless Steel Combination Nipple, 1/2 in Hose x 1/2 in MNPT

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: RST1
  • MPN: RST1
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Sold As: 50/PK
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® King™ Combination Nipple, Connection Type 1: Hose, Connection Size 1: 1/2 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1/2 in, Material Construction: 316 Stainless Steel, 27/32 in Diameter, 3-1/8 in Length

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Connection Type 1      :      Hose
Connection Type 2      :      NPT
Diameter      :      27/32 in
Gender 2      :      Male
Length      :      3-1/8 in
Material      :      Stainless Steel
Material Construction      :      316 Stainless Steel
Shape      :      Nipple
Sub Brand      :      King™
  • NPT threaded end no knurl

Safety Notes: King combination nipples are not recommended for steam.

  • The working pressure may vary with the construction of the hose, the type of clamping system used and the application.
  • Consult Dixon® for recommendations.
  • In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for 15 min without leaking or coupling movement.
  • For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.

    Applications: For low-pressure discharge and suction service for compatible liquids

    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_RST1_CAT.pdf
    • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_RST1_TD.pdf
