Dixon® M2S3 CP37-44

Dixon® M2S3

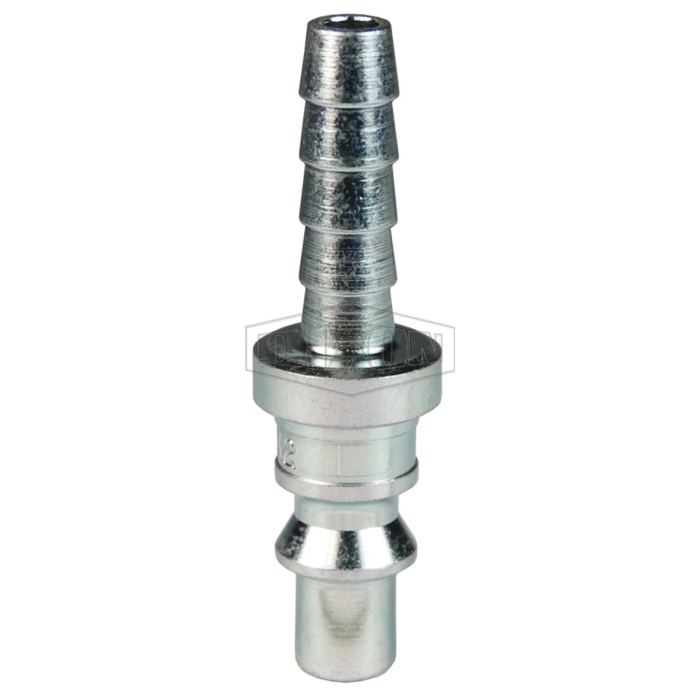

Dixon® M Series Trivalent Chrome-Plated Steel ARO Pneumatic Interchange Plug, 1/4 in Quick Disconnect x 3/8 in Hose Barb

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: CP37-44
  • MPN: M2S3
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® ARO Pneumatic Interchange Plug, Series: M, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: Hose Barb, Connection Size 2: 3/8 in, 300 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 0.56 in OD x 2 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/4 in
Connection Size 2      :      3/8 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      Hose Barb
Dimensions      :      0.56 in OD x 2 in L
Finish      :      Trivalent Chrome-Plated
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      300 psi
Series      :      M
Shape      :      Plug
Temperature Rating      :      -40 to 250 deg F
  • Machined components are manufactured using solid bar stock
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Automatic couplings interchanges with ARO 210/310 designs and Hansen Series 210/310
  • Manual couplings interchange with Parker 50 Series and Amflo Type 'B'

Safety Notes: Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and hose end connection combination.

  • Consult hose manufacturer's catalog for hose end connection ratings.
  • If in doubt, test under controlled conditions for suitability to application.
  • Dixon® cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and personal injury including death.
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.
  • Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
  • To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2MS2-PL_CAT.pdf
