Dixon® MAH12 MAH12

Dixon® MAH12

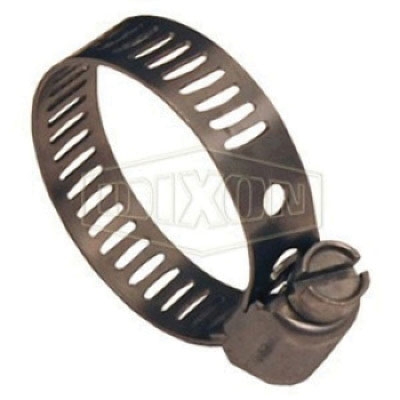

Dixon® MAH SAE 300 Stainless Steel Miniature Worm Gear Clamp, 44/64 in, 5/16 in W

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: MAH12
  • MPN: MAH12
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • Sold As: 200/CS
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Miniature Worm Gear Clamp, Series: MAH, 1-16/64 in Maximum Clamp Diameter, 44/64 in Minimum Clamp Diameter, Locking Style: Screw, Torque Rating: 15 in-lb, Material Construction: SAE 300 Stainless Steel, 5/16 in Width, Packaging Quantity: 10 BX

California residents see Prop 65 WARNINGS

Locking Style      :      Screw
Material      :      Stainless Steel
Material Construction      :      SAE 300 Stainless Steel
Maximum Clamp Diameter      :      1-16/64 in
Minimum Clamp Diameter      :      44/64 in
Packaging Quantity      :      10 BX
Product Type      :      Worm Gear Clamp
Series      :      MAH
Torque Rating      :      15 in-lb
Width      :      5/16 in
  • 1/4 in slotted hex head screw design
  • SAE 300 Series stainless steel band, housing and screw

Safety Notes: Maximum recommended torque is 15 in-lb.

  • Torque ratings correspond to the torque rating of the screw of the clamp and are not an indication of the working pressure of any hose assembly installed with this clamp.
    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_4001_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_HSS312_SS.pdf
