Dixon® PPE125 PPE125

Dixon® PPE125

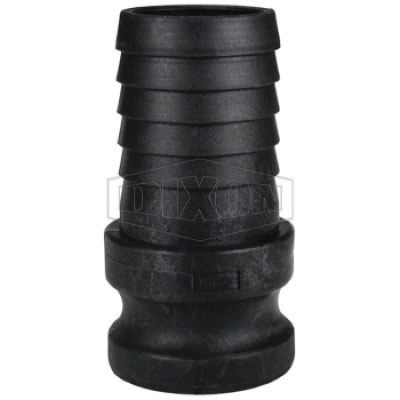

Dixon® PPE125 Polypropylene Cam and Groove Adapter, 1-1/2 in Male Type E x 1-1/4 in Hose Shank

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: PPE125
  • MPN: PPE125
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • Sold As: 24/PK
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Cam and Groove Adapter, Connection Type 1: Type E, Gender 1: Male, Connection Size 1: 1-1/2 in, Connection Type 2: Hose Stem, Connection Size 2: 1-1/4 in, 100 psi, Material Construction: Polypropylene, Dimensions: 2-1/2 in Dia x 4-3/8 in L, 70 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1-1/2 in
Connection Size 2      :      1-1/4 in
Connection Type 1      :      Type E
Connection Type 2      :      Hose Stem
Dimensions      :      2-1/2 in Dia x 4-3/8 in L
Gender 1      :      Male
Material      :      Polypropylene
Material Construction      :      Polypropylene
Pressure Rating      :      100 psi
Shape      :      Adapter
Temperature Rating      :      70 deg F
  • Manufactured from glass-filled polypropylene

Safety Notes: Under no circumstances should cam and groove couplings be used for compressed air or steam service!

  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
  • For use at elevated temperature or other unusual operating conditions, consult Dixon®.
  • Polypropylene cam and groove should not be mixed with metal fittings.
  • Not recommended for use with PTFE gaskets.
    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_PPC50_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_PPE125_SS.pdf
    • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_PPE125_TD.pdf
