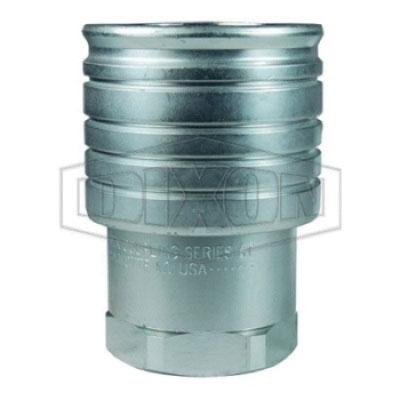

Dixon® 4STF4

Dixon® Snap-Tite 71 Interchange Coupler, Series: ST, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1-1/2 in, 10000 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.98 in OD x 2.77 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

• Machined components are manufactured using solid bar stock
• Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
• Steel componentry is plated using RoHS compliant trivalent chrome
• Steel coupler sleeves are hardened to resist deformation and maximize service life
• Nitrile (Buna-N) seals are standard
• Incorporates PTFE anti-extrusion rings to protect seal components from dynamic impulse damage
• Interchangeable with Snap-Tite 71 Series

• Catalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_4STF4_CAT.pdf
• Cut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_4STF4_SS.pdf
• Installation Instructions https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_4STF4_II.pdf
