Dixon® 3UF3-B 3UF3-B

Dixon® 3UF3-B

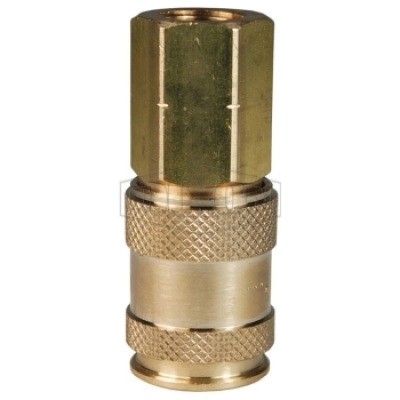

Dixon® U Series Brass Universal Pneumatic Coupler, 3/8 in Quick Disconnect x 3/8 in FNPT

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: 3UF3-B
  • MPN: 3UF3-B
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Universal Pneumatic Coupler, Series: U, Connection Type 1: Quick Disconnect, Connection Size 1: 3/8 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 3/8 in, Hex Size: 15/16 in, 300 psi, Material Construction: Brass, Dimensions: 1.09 in OD x 2.54 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      3/8 in
Connection Size 2      :      3/8 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPT
Dimensions      :      1.09 in OD x 2.54 in L
Gender 2      :      Female
Hex Size      :      15/16 in
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      300 psi
Series      :      U
Shape      :      Coupler
Temperature Rating      :      -40 to 250 deg F
  • Machined components are manufactured using solid bar stock
  • Stainless steel springs, carbon steel balls and retaining rings
  • Valve components are machined from solid brass bar stock
  • Nitrile (Buna-N) seals are standard
  • 3U series 4-in-1 (ARO 310, industrial, Truflate and CEJN410)
  • Parker UC Series, Hansen Auto-Flo 23 and Coilhose Series UC

Safety Notes: It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.

  • Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
  • To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
  • Many competitive universal couplings are unable to match the performance capabilities of the Dixon® U series.
  • Although the universal coupler permits multiple series nipples to mate with one coupler, it is recommended to match like series couplers and nipples.
  • When using a universal coupler, the lower performance rating between the coupler and the nipple must take precedence.
  • Dry air: Some pneumatic applications require the pressurized air to be dried to ensure proper operation of equipment and application of product.
  • It is best to match like series couplers and nipples in these applications.
  • If it is necessary to use a universal coupler, lube the seal and valve area regularly to ensure reliable service.
    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_3UF3B_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_3UF3B_SS.pdf
