Dixon® 4VF4-E 4VF4-E

Dixon® 4VF4-E

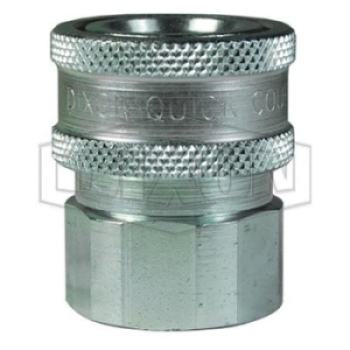

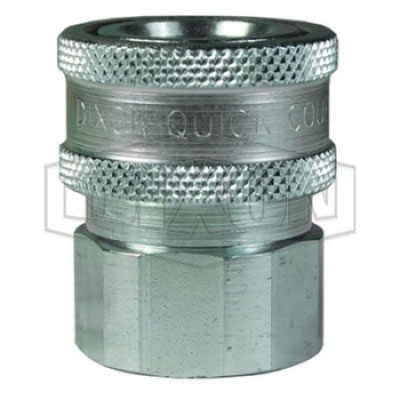

Dixon® V Series Trivalent Chrome-Plated Steel Snap-Tite H/IH Interchange Unvalved Coupler, 1/2 in Quick Disconnect x 1/2 in FNPTF

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: 4VF4-E
  • MPN: 4VF4-E
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Snap-Tite H/IH Interchange Unvalved Coupler, Series: V, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1-3/16 in, 11000 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.37 in OD x 1.64 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimensions      :      1.37 in OD x 1.64 in L
Finish      :      Trivalent Chrome-Plated
Gender 2      :      Female
Hex Size      :      1-3/16 in
Industry Category      :      Hydraulic Quick Disconnects
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      11000 psi
Series      :      V
Shape      :      Coupler
Temperature Rating      :      -40 to 250 deg F
Thread Size 2      :      1/2-14
  • General-purpose hydraulic quick-connect provides superior flow characteristics with built-in reliability
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Steel coupler sleeves are hardened to resist deformation and maximize service life
  • Nitrile (Buna-N) seals are standard
  • All couplers incorporate a PTFE anti-extrusion ring to protect the seal components from dynamic impulse damage
  • Interchangeable to MIL-C-51234
  • Snap-Tite H and Faster TNV
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2VF2SSE_CAT.pdf
  • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2VF2SSE_SS.pdf
