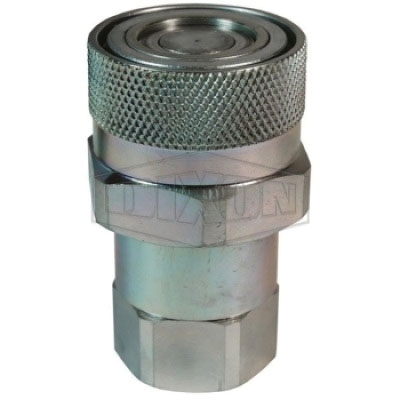

Dixon® Coupler, Series: VEP, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 22 mm, 6000 psi, Material Construction: Steel, Finish: Zinc/Nickel-Plated, Dimensions: 1.49 in OD x 2.14 in L, -40 to 250 deg F
California residents see Prop 65 WARNINGS
Connection Size 1
:
1/4 in
Connection Size 2
:
1/4 in
Connection Type 1
:
Quick Disconnect
Connection Type 2
:
NPTF
Dimensions
:
1.49 in OD x 2.14 in L
Finish
:
Zinc/Nickel-Plated
Gender 2
:
Female
Hex Size
:
22 mm
Material
:
Steel
Material Construction
:
Steel
Pressure Rating
:
6000 psi
Series
:
VEP
Shape
:
Coupler
Temperature Rating
:
-40 to 250 deg F
Thread Size 2
:
1/4-18
Two-stage valving to protect critical sealing components during pressurized connection and disconnection Posi-Lock valve system secures valving during surge-flow conditions to prevent high velocity damage No-spill, flush face valve minimizes air inclusion during connection and spillage during disconnection Threaded design eliminates premature wear or brinelling commonly found with locking ball designs when subjected to high-impulse pressures Machined components are manufactured using solid steel bar stock Stainless steel retaining rings and springs maximize corrosion resistance and extend service life Steel componentry is plated using RoHS compliant zinc nickel for superior corrosion resistance Valve stems have molded polyurethane seals, with a temperature range of -65 to 212 deg F Ancillary coupler seals are nitrile (Buna-N), with a temperature range of -40 to 250 deg F TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage Interchangeable with Stucchi VEP-P/VEP-HD Series, DNP PST4/FSI Series, Voswinkel FT Series, Parker FET Series and Holmbury HFT Series
