Dixon® 8VEPF8 8VEPF8

Dixon® 8VEPF8

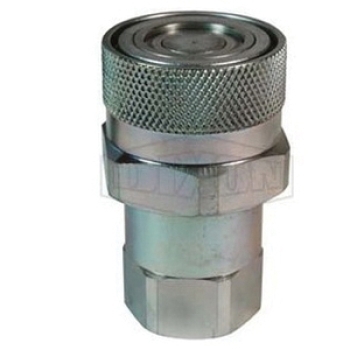

Dixon® VEP Zinc/Nickel-Plated Steel Coupler, 1 in Quick Disconnect x 1 in FNPTF

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: 8VEPF8
  • MPN: 8VEPF8
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Coupler, Series: VEP, Connection Type 1: Quick Disconnect, Connection Size 1: 1 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: 1-11-1/2, Hex Size: 44 mm, 5500 psi, Material Construction: Steel, Finish: Zinc/Nickel-Plated, Dimensions: 3.89 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimensions      :      3.89 in L
Finish      :      Zinc/Nickel-Plated
Gender 2      :      Female
Hex Size      :      44 mm
Industry Category      :      Hydrulic Quick Disconnects
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      5500 psi
Series      :      VEP
Shape      :      Coupler
Temperature Rating      :      -40 to 250 deg F
Thread Size 2      :      1-11-1/2
  • Two-stage valving to protect critical sealing components during pressurized connection and disconnection
  • Posi-Lock valve system secures valving during surge-flow conditions to prevent high velocity damage
  • No-spill, flush face valve minimizes air inclusion during connection and spillage during disconnection
  • Threaded design eliminates premature wear or brinelling commonly found with locking ball designs when subjected to high-impulse pressures
  • Machined components are manufactured using solid steel bar stock
  • Stainless steel retaining rings and springs maximize corrosion resistance and extend service life
  • Steel componentry is plated using RoHS compliant zinc nickel for superior corrosion resistance
  • Valve stems have molded polyurethane seals, with a temperature range of -65 to 212 deg F
  • Ancillary coupler seals are nitrile (Buna-N), with a temperature range of -40 to 250 deg F
  • TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage
  • Interchangeable with Stucchi VEP-P/VEP-HD Series, DNP PST4/FSI Series, Voswinkel FT Series, Parker FET Series and Holmbury HFT Series
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_3VEPF4_CAT.pdf
  • pdfCut sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_6VEPF6_SS.pdf
