DK-LOK DTBS 12-12UP-S DTBS 12-12UP

DK-LOK DTBS 12-12UP-S

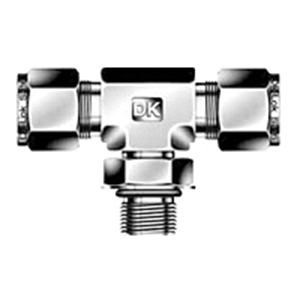

DK-LOK DTBS-UP 316/316L Stainless Steel Branch Tee, 3/4 in Male Tube x 3/4 in Male Tube x 3/4 in SAE ORB

  • Manufacturer: DK-LOK
  • Brand: DK-LOK
  • ARGPN: DTBS 12-12UP
  • MPN: DTBS 12-12UP-S
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for DK-LOK factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

DK-LOK Branch Tee, Series: DTBS-UP, Connection Type 1: Tube, Gender 1: Male, Connection Size 1: 3/4 in, Connection Type 2: Tube, Gender 2: Male, Connection Size 2: 3/4 in, Connection Type 3: SAE ORB, Connection Size 3: 3/4 in, Thread Size 3: 1-1/6-12, Hex Size: 1-1/16 x 1-1/8 x 1-1/4 in, Material Construction: 316/316L Stainless Steel, Dimensions: 82.8 mm L

Connection Size 1      :      3/4 in
Connection Size 2      :      3/4 in
Connection Size 3      :      3/4 in
Connection Type 1      :      Tube
Connection Type 2      :      Tube
Connection Type 3      :      SAE ORB
Dimensions      :      82.8 mm L
Gender 1      :      Male
Gender 2      :      Male
Hex Size      :      1-1/16 x 1-1/8 x 1-1/4 in
Material      :      Stainless Steel
Material Construction      :      316/316L Stainless Steel
Series      :      DTBS-UP
Shape      :      Tee
Thread Size 3      :      1-1/6-12
