DNP Americas 600SF-CD62-20-20 600SF-CD62-20-20

DNP Americas 600SF-CD62-20-20

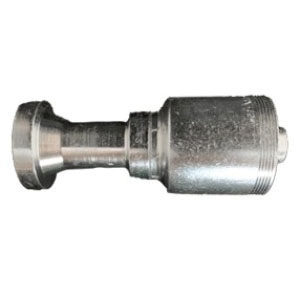

DNP Americas 600SF SAE Code 62 Flange 1-Piece Spiral Fit Crimp Hose Fitting, 1-1/4 in

  • Manufacturer: DNP Americas
  • Brand: DNP Americas
  • ARGPN: 600SF-CD62-20-20
  • MPN: 600SF-CD62-20-20
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

DNP Americas 1-Piece Spiral Fit Crimp Hose Fitting, Series: 600SF, Connection Type 1: Hose, Connection Size 1: 1-1/4 in, Hose Dash Size: 20, Connection Type 2: SAE Code 62 Flange, Connection Size 2: 1-1/4 in, For Use With: 4SH, Freedom, R13 and R15 Hoses, 4 and 6 Spiral Hoses, Dimensions: 5.83 in L

Connection Size 1      :      1-1/4 in
Connection Size 2      :      1-1/4 in
Connection Type      :      Hose~Code 62 Flange
Connection Type 1      :      Hose
Connection Type 2      :      SAE Code 62 Flange
Dimensions      :      5.83 in L
Fitting Type      :      Hose Fitting
For Use With      :      4SH, Freedom, R13 and R15 Hoses, 4 and 6 Spiral Hoses
Hose Dash Size      :      20
Series      :      600SF
Shape      :      Straight
  • 600SF series fittings have a strong structure designed for extreme pressures and spikes, high impulses and vibration
  • They also have extraordinary resistance to fatigue
  • The universal ferrule can be used either with 4 or 6-spiral hoses
  • These extreme-duty fittings are used for industrial and mobile hydraulics
  • They are ideal for construction, mining, petroleum and earthmoving equipment
  • 600SF series fittings can be identified by the S located on the ferrule
  • When making hose assemblies using 600SF series fittings, make sure that the hose you are using is designed to work with the 600SF series hose fittings

Applications: For construction, mining, petroleum and earthmoving equipment

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/DNP_Americas_600SFCD622020_CAT.pdf
  • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/DNP Americas_600SF-CD62-20-24_SS.pdf
