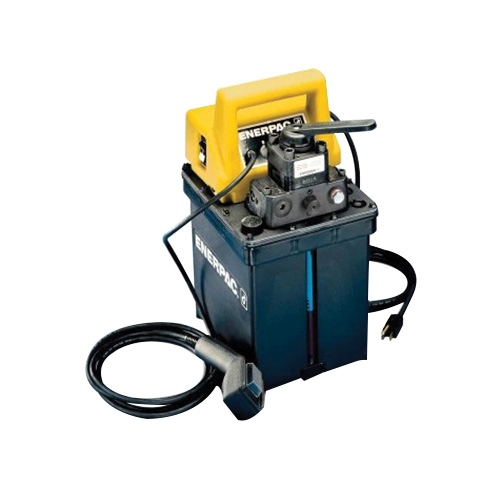

Enerpac® PEM-1301B

Enerpac® PE Series 3/3 Tandem Center Manual Valve Electric Submerged Hydraulic Pump, 0.5 hp, 115 V, 347 cu-in, For Single-Acting Cylinder

Manufacturer: Enerpac
Brand: Enerpac®
ARGPN: PEM-1301B

MPN: PEM-1301B

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Add to cart

Description
Specs
Features
Documents

Enerpac® 3/3 Tandem Center Manual Valve Electric Submerged Hydraulic Pump, Series: PE, 115 V, 13 A, Horsepower: 0.5 hp, Reservoir Capacity: 347 cu-in, Oil Displacement: 15 gal, 10000 psi, Includes: WMF 10000D 3-Way, 3-Position, Tandem Center Manual Valve, For Use With: Single-Acting Cylinder

Current Rating	:	13 A
For Use With	:	Single-Acting Cylinder
Horsepower	:	0.5 hp
Includes	:	WMF 10000D 3-Way, 3-Position, Tandem Center Manual Valve
Oil Displacement	:	15 gal
Pressure Rating	:	10000 psi
Product Type	:	Hydraulic Pump
Reservoir Capacity	:	347 cu-in
Series	:	PE
Voltage Rating	:	115 V

The submerged pump is best suited to power small to medium size cylinders or hydraulic tools or whenever a quiet, intermittent duty cycle is needed. With its low sound level and the addition of the optional oil cooler, the submerged pump is suited to light production work as well. Its lightweight and compact design also make it ideal for applications which require some transport of the pump.

Two-speed operation reduces cycle times for improved productivity
Powerful 1/2 hp induction motor is submerged in the oil reservoir to run cooler, protect the motor simplify the pump interface, save space and reduce noise
24 VDC remote pendant control on certain models for safer operation
Externally adjustable relief valve allows control of operating pressure without opening the pump
40 um internal return line filter keeps oil clean, promoting longer pump life
Full length side tube for easy monitoring of oil level
