Fill-Rite® FR4211D FR4211G

Fill-Rite® FR4211D

Fill-Rite® FR4200 Cast Iron High-Flow Pump, 1 in, 1 in, 20 gpm with meter

  • Manufacturer: Fill-Rite
  • Brand: Fill-Rite®
  • ARGPN: FR4211G
  • MPN: FR4211D
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Fill-Rite factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Fill-Rite® High-Flow Pump, Series: FR4200, Connection Size 1: 1 in, Connection Size 2: 1 in, 20 gpm, 18-1/4 in Length, 18-5/8 in Width, 18 in Height, Material Construction: Cast Iron, Viscosity: 50 SUS, 12 VDC, 4.9 A, 2600 rpm, 0 - 16 psi, Includes: Pump, 1 in Manual Nozzle, 1 x 12 in Hose with Static Ground Wire, 18 ft Battery Cable, and 20 - 34 in Steel Telescoping Suction Pipe and 4-Digit Mechanical Meter

Amperage Rating      :      4.9 A
Connection Size 1      :      1 in
Connection Size 2      :      1 in
Flow Rate      :      20 gpm
Height      :      18 in
Includes      :      Pump, 1 in Manual Nozzle, 1 x 12 in Hose with Static Ground Wire, 18 ft Battery Cable, and 20 - 34 in Steel Telescoping Suction Pipe and 4-Digit Mechanical Meter
Length      :      18-1/4 in
Material      :      Malleable Iron
Material Construction      :      Cast Iron
Pressure Rating      :      0 - 16 psi
Product Type      :      High-Flow Pump
Series      :      FR4200
Speed      :      2600 rpm
Viscosity      :      50 SUS
Voltage Rating      :      12 VDC
Width      :      18-5/8 in

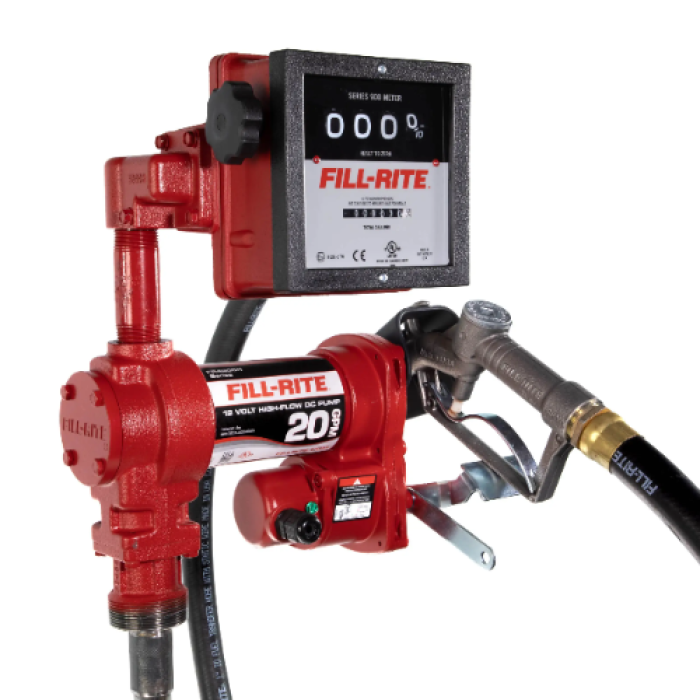

12 VDC, 20 gpm heavy-duty, cast-iron, rotary vane fuel transfer pump. Designed for gasoline, diesel, biodiesel up to B20, E15, kerosene and mineral spirits. Includes pump, 1 manual nozzle, 1 in x 12 in hose with static ground wire, 18 ft battery cable with clamps, 20 to 34 in steel telescoping suction pipe and 4-digit mechanical meter. Limited lifetime warranty. Made in USA.

  • 1/4 hp motor
  • 2 in threaded base for tank mounting
  • Iron rotor with bronze rotary vanes
  • Built-in strainer

Applications: Designed for gasoline, diesel, bio-diesel up to B20, E-15, kerosene, and mineral spirits

  • pdfCut sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/FILL-RITE_FR4211D_SS.pdf
  • pdfOwner's Manual https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/FILL-RITE_FR4211D_OM.pdf
  • pdfWarranty https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/FILL-RITE_FRAP32V_W.pdf
