Fill-Rite® 825 825

Fill-Rite® 825

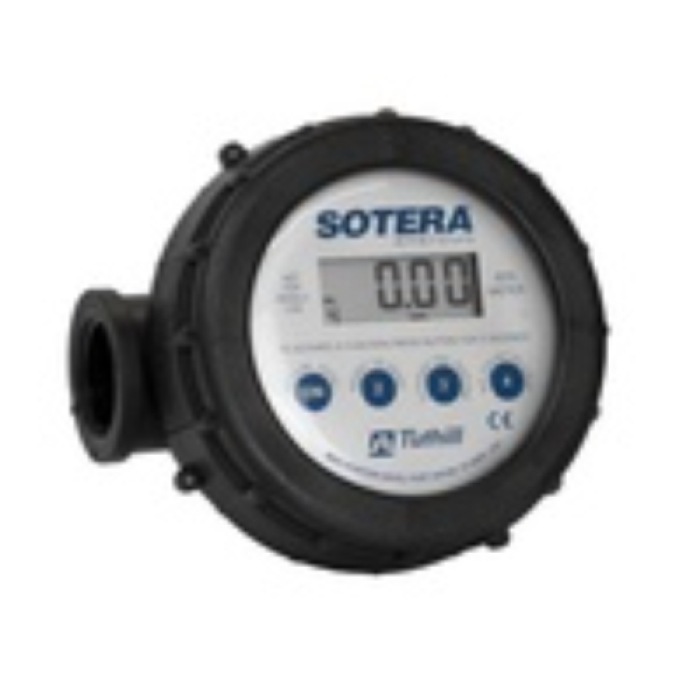

Fill-Rite® SOTERA™ 800 Glass Filled Polypropylene Digital Display Meter, 1 in FNPT, 2 - 20 gpm

  • Manufacturer: Fill-Rite
  • Brand: Fill-Rite®
  • ARGPN: 825
  • MPN: 825
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Fill-Rite factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Fill-Rite® SOTERA™ Digital Display Meter, Series: 800, Connection Size: 1 in, Connection Type: FPT, 2 - 20 gpm, +/-0.5 % Accuracy, 125 psi, LCD Display, Material Construction: Glass Filled Polypropylene, FKM Seal, 5-1/2 in Length, 3-1/4 in Width, 5 in Height, For Use With: Rotary Vane or 400B Series Diaphragm Pumps, -10 to 130 deg F

Accuracy      :      +/-0.5 %
Connection Size      :      1 in
Connection Type      :      FPT
Display Type      :      LCD
Flow Rate      :      2 - 20 gpm
For Use With      :      Rotary Vane or 400B Series Diaphragm Pumps
Height      :      5 in
Length      :      5-1/2 in
Material      :      Polypropylene
Material Construction      :      Glass Filled Polypropylene
Pressure Rating      :      125 psi
Product Type      :      Digital Display Meter
Seal Material      :      FKM
Series      :      800
Sub Brand      :      SOTERA™
Temperature Rating      :      -10 to 130 deg F
Width      :      3-1/4 in

SOTERA™ positive displacement nutating disc meter is ideal for end of hose use, in-line or mounted to one of our rotary vane or 400B Series diaphragm pumps. It is able to store and display the current flow amount (total) or the cumulative flow amount (totalizer) in any of six user-specified units.

  • 360 deg positioning display
  • Quick, one step calibration
  • Corrosion-resistant coating
  • Battery powered
  • Includes (2) AA alkaline batteries

Applications: For pesticides, fertilizers, water, crop oil, mild acids, diesel exhaust fluid, diesel fuel, mineral spirits, motor oil, gear oil, ethylene glycol and soap detergents

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/FILL-RITE_825_CAT.pdf
  • pdfInstallation Instructions https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/FILL-RITE_825_II.pdf
