Gates® 6C5-6RFJXB 6C5-6FJXB

Gates® 6C5-6RFJXB

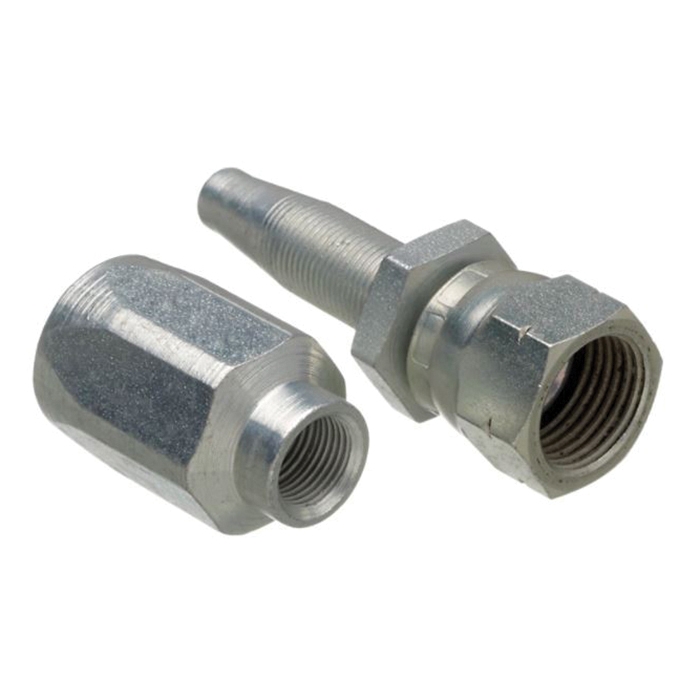

Gates® 6C5-6RFJXB Brass Female 37 deg JIC Swivel Field Attachable Coupling, 3/8 in

  • Manufacturer: Gates Corp
  • Brand: Gates®
  • ARGPN: 6C5-6FJXB
  • MPN: 6C5-6RFJXB
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Gates Corp factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Gates® Field Attachable Coupling, Connection Type 1: Hose, Connection Size 1: 3/8 in, Hose Dash Size: 06, Connection Type 2: 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 3/8 in, Nominal Size: 3/8 in, Thread Size 2: 9/16-18, Hex Size: 3/4 in, Cut-Off Factor: 1.44 in, Material Construction: Brass, For Use With: C5CXH, C5C, C5D and C5M Hoses, Dimensions: 2.39 in L

Connection Size 1      :      3/8 in
Connection Size 2      :      3/8 in
Connection Type      :      Hose~JIC Female Swivel
Connection Type 1      :      Hose
Connection Type 2      :      37 deg JIC Swivel
Cut-Off Factor      :      1.44 in
Dimensions      :      2.39 in L
Fitting Type      :      Coupling
For Use With      :      C5CXH, C5C, C5D and C5M Hoses
Gender 2      :      Female
Hex Size      :      3/4 in
Hose Dash Size      :      06
Material      :      Brass
Material Construction      :      Brass
Nominal Size      :      3/8 in
Shape      :      Coupling
Thread Size 2      :      9/16-18

Our D.O.T. Type A1 field attachable couplings work with Gates C5E hose to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper.
