Gates® 24GL-24MP

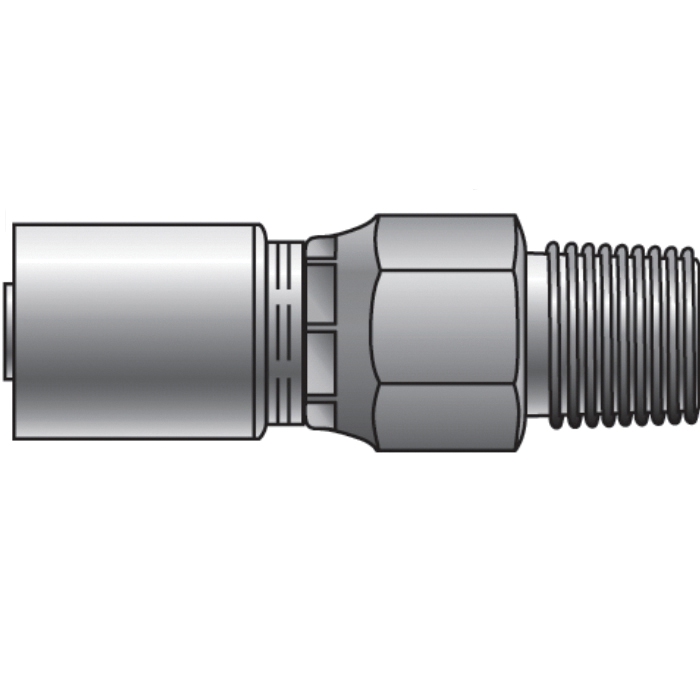

Gates® GL Series Male 30 deg Cone Seat NPTF Crimp Straight Hose Fitting, 1-1/2 in

Manufacturer: Gates Corp
Brand: Gates®
ARGPN: 24GL-24MP

MPN: 24GL-24MP

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Available for Gates Corp factory-direct delivery:
Add to cart

Description
Specs
Features
Documents

Gates® Crimp Straight Hose Fitting, Series: GL, Connection Type 1: Hose, Connection Size 1: 1-1/2 in, Hose Dash Size: 24, Connection Type 2: 30 deg Cone Seat NPTF, Gender 2: Male, Connection Size 2: 1-1/2 in, Nominal Size: 1-1/2 in, Thread Size 2: 1-1/2-11-1/2, Hex Size: 2 in, Cut-Off Factor: 2.19 in, For Use With: Multi Master® SD MegaFlex®, MegaTech® Pressure Hoses, GMV™ Suction Hoses, Dimensions: 4.83 in L

Connection Size 1	:	1-1/2 in
Connection Size 2	:	1-1/2 in
Connection Type	:	Hose~NPT Male
Connection Type 1	:	Hose
Connection Type 2	:	30 deg Cone Seat NPTF
Cut-Off Factor	:	2.19 in
Dimensions	:	4.83 in L
Fitting Type	:	Straight Hose Fitting
For Use With	:	Multi Master® SD MegaFlex®, MegaTech® Pressure Hoses, GMV™ Suction Hoses
Gender 2	:	Male
Hex Size	:	2 in
Hose Dash Size	:	24
Nominal Size	:	1-1/2 in
Series	:	GL
Shape	:	Straight
Thread Size 2	:	1-1/2-11-1/2

Gates® low pressure couplings with pre-crimped soft shell has been specifically designed to work with lower pressure hydraulic suction lines and low pressure return line hose. Its short body length provides the necessary grip for low pressure hose requirements and the bubble pattern crimp design ensures the similar optimal sealing to that of helical wire hoses on return vacuum applications.

Catalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_1012FJX_CAT.pdf
