Gates® 10GS-10FBSPORX90

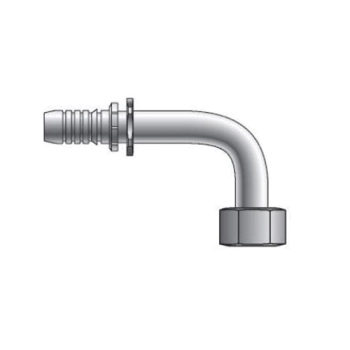

Gates® GlobalSpiral™ 10GS-10FBSPORX90 TuffCoat® Steel Female BSPP O-Ring Swivel Crimp Hose 90 deg Elbow, 5/8 in

Manufacturer: Gates Corp
Brand: Gates®
ARGPN: 10GS-10FBSPORX90

MPN: 10GS-10FBSPORX90

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Sold As: 1/PK
Add to cart

Description
Specs
Features
Documents

Gates® GlobalSpiral™ Crimp Hose 90 deg Elbow, Connection Type 1: Hose, Connection Size 1: 5/8 in, Hose Dash Size: 10, Connection Type 2: BSPP O-Ring Swivel, Gender 2: Female, Connection Size 2: 5/8 in, Nominal Size: 5/8 in, Thread Size 2: 5/8-14, Hex Size: 30 mm, 6000 psi, Cut-Off Factor: 2.45 in, Material Construction: Steel, Finish: TuffCoat®, Dimension Standards: ISO Working Draft 12151-6, 250 deg F

Connection Size 1	:	5/8 in
Connection Size 2	:	5/8 in
Connection Type	:	Hose~BSPP Female Swivel
Connection Type 1	:	Hose
Connection Type 2	:	BSPP O-Ring Swivel
Cut-Off Factor	:	2.45 in
Dimension Standards	:	ISO Working Draft 12151-6
Finish	:	TuffCoat®
Fitting Type	:	90 deg Elbow
Gender 2	:	Female
Hex Size	:	30 mm
Hose Dash Size	:	10
Material	:	Steel
Material Construction	:	Steel
Nominal Size	:	5/8 in
Pressure Rating	:	6000 psi
Shape	:	90 deg Elbow
Sub Brand	:	GlobalSpiral™
Temperature Rating	:	250 deg F
Thread Size 2	:	5/8-14

Gates® GlobalSpiral™ couplings provide superior performance for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. The innovative two-piece, no-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Coated with TuffCoat® plating more than 5x better corrosion resistance than SAE ASTM B117 specification.

Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types
Surpasses one million impulse cycles
One stem used for all spiral hoses
