Hansen™ and Gromelle™ 3L15

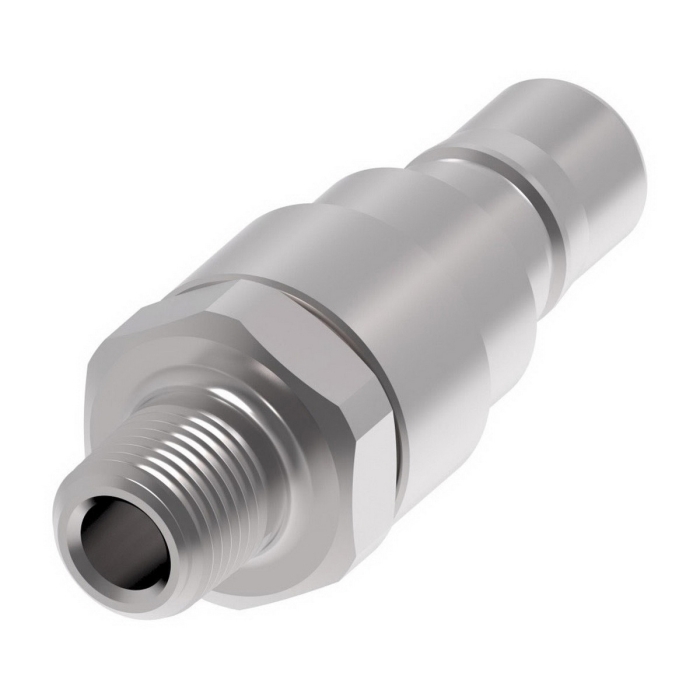

Hansen™ and Gromelle™ 3RL Zinc Trivalent Carbon Steel Coupling, 3/8 in Male Quick Disconnect x 1/4 in MNPTF

Manufacturer: Danfoss Power Solutions
Brand: Hansen™ and Gromelle™
ARGPN: 3L15

MPN: 3L15

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Available for Danfoss Power Solutions factory-direct delivery:
Add to cart

Description
Specs
Features
Documents

Hansen™ and Gromelle™ Coupling, Series: 3RL, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 3/8 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 0.63 in, 300 psi, Material Construction: Carbon Steel, Finish: Zinc Trivalent, Dimensions: 1.7 in L x 0.72 in W x 0.72 in H, -40 to 250 deg F

Connection Size 1	:	3/8 in
Connection Size 2	:	1/4 in
Connection Type 1	:	Quick Disconnect
Connection Type 2	:	NPTF
Dimensions	:	1.7 in L x 0.72 in W x 0.72 in H
Finish	:	Zinc Trivalent
Gender 1	:	Male
Gender 2	:	Male
Hex Size	:	0.63 in
Material	:	Steel
Material Construction	:	Carbon Steel
Pressure Rating	:	300 psi
Series	:	3RL
Shape	:	Coupling
Temperature Rating	:	-40 to 250 deg F
Thread Size 2	:	1/4-18

Eaton's 3RL ring lock Series quick disconnect pneumatic couplings have a unique interchange which Eaton designed for use with compressed air.

Auto-Flo 23 was the first automatic universal coupling designed to operate with industrial, ARO 210 and tru-flate interchange plugs
Auto-Flo 24 operates with CEJIN 320 and Rectus 25 interchange plugs
Sleeve guard protects against accidental disconnection
Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket end of line
High flow capacity
Push to connect with a ring lock sleeve
Ring lock design prevents accidental disconnection
To disconnect rotate sleeve 20 deg
Standard seal material Buna-N

Applications: Air tools, construction, general pneumatics
