Hansen™ and Gromelle™ FD35-1008-06-06

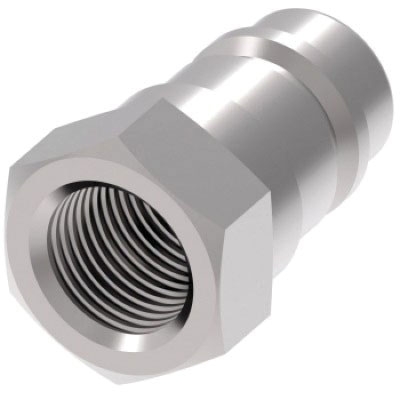

Hansen™ and Gromelle™ FD35 Trivalent Zinc-Plated Carbon Steel Arc-Latch Coupling, 3/8 in Male Quick Disconnect x 3/8 in Female SAE ORB
- Manufacturer: Danfoss Power Solutions
- Brand: Hansen™ and Gromelle™
- ARGPN: FD35-1008-06-06
- MPN: FD35-1008-06-06
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Danfoss Power Solutions factory-direct delivery:
-
Hansen™ and Gromelle™ Arc-Latch Coupling, Series: FD35, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 3/8 in, Connection Type 2: SAE ORB, Gender 2: Female, Connection Size 2: 3/8 in, Thread Size 2: 9/16-18, Hex Size: 0.94 in, 10000 psi, Material Construction: Carbon Steel, Finish: Trivalent Zinc-Plated, Dimensions: 2.12 in L x 1.27 in W x 1.27 in H, -15 to 400 deg F
| Connection Size 1 | : | 3/8 in |
| Connection Size 2 | : | 3/8 in |
| Connection Type 1 | : | Quick Disconnect |
| Connection Type 2 | : | SAE ORB |
| Dimensions | : | 2.12 in L x 1.27 in W x 1.27 in H |
| Finish | : | Trivalent Zinc-Plated |
| Gender 1 | : | Male |
| Gender 2 | : | Female |
| Hex Size | : | 0.94 in |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Pressure Rating | : | 10000 psi |
| Series | : | FD35 |
| Shape | : | Coupling |
| Temperature Rating | : | -15 to 400 deg F |
| Thread Size 2 | : | 9/16-18 |
Eaton's FD35 Series ball latch has a greater surface contact area for long surface life in rugged high-pressure applications. The maximum operating pressure is 10000 psi.
- Safety sleeve lock prevents accidental disconnection
- Heavy-duty back-up ring prevents O-ring extrusion
- Heat treated and plated steel for wear and corrosion resistance
- Self-sealing poppet valve design provides excellent high and low pressure sealing
- FKM seal
Warranty: 3 Years Limited
Applications: For 10000 psi hydraulic applications, hydraulic tool, hydraulic ram and work loading
