Hansen™ and Gromelle™ FD48-1002-04-04 FD48-1002-04-04

Hansen™ and Gromelle™ FD48-1002-04-04

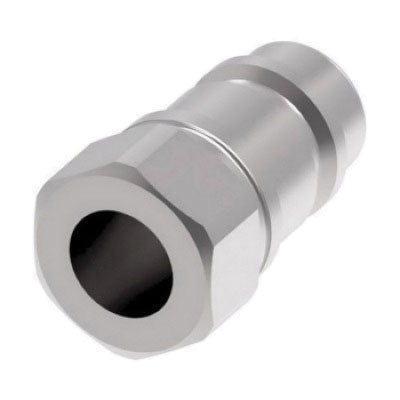

Hansen™ and Gromelle™ FD48 Trivalent Zinc-Plated Carbon Steel Valved Coupling Plug, 1/4 in Male Quick Disconnect x 1/4 in FNPT

  • Manufacturer: Danfoss Power Solutions
  • Brand: Hansen™ and Gromelle™
  • ARGPN: FD48-1002-04-04
  • MPN: FD48-1002-04-04
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Danfoss Power Solutions factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Hansen™ and Gromelle™ Valved Coupling Plug, Series: FD48, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1/4 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 3/4 in, 3000 psi, Material Construction: Carbon Steel, Finish: Trivalent Zinc-Plated, Dimensions: 1.45 in L x 0.75 in W x 0.75 in H, -40 to 250 deg F

Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPT
Dimensions      :      1.45 in L x 0.75 in W x 0.75 in H
Finish      :      Trivalent Zinc-Plated
Gender 1      :      Male
Gender 2      :      Female
Hex Size      :      3/4 in
Material      :      Steel
Material Construction      :      Carbon Steel
Pressure Rating      :      3000 psi
Series      :      FD48
Shape      :      Plug
Temperature Rating      :      -40 to 250 deg F
Thread Size 2      :      1/4-18

Eaton's FD48 Series coupling is poppet style quick disconnect coupling designed to interchange with Parker Bruning SM-250 couplings where excellent high and low pressure sealing is required. The FD48 operates with pressures up to 3000 psi.

  • Self-sealing poppet valve design provides excellent high and low pressure sealing
  • PUSH-PULL™ ball latch design allows quick and easy connection and disconnection of fluid lines
  • Heat treated and plated steel for wear and corrosion resistance
  • Standard seal material high-resistance carbon steel with zinc trivalent plating

Warranty: 3 Years Limited

Applications: Hydraulic tool (HTMA interchange), hydraulic and fluid transfer
