Hansen™ and Gromelle™ LL1100

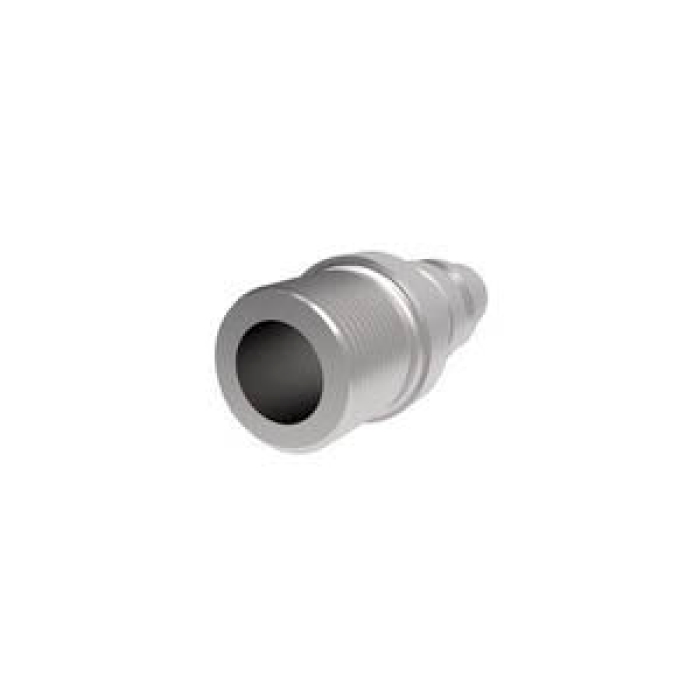

Hansen™ and Gromelle™ 1000 Stainless Steel Coupling, 1/4 in Female Quick Disconnect x 1/4 in MNPTF

Manufacturer: Danfoss Power Solutions
Brand: Hansen™ and Gromelle™
ARGPN: LL1100

MPN: LL1100

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Available for Danfoss Power Solutions factory-direct delivery:
Add to cart

Description
Specs
Features
Documents

Hansen™ and Gromelle™ Coupling, Series: 1000, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 0.69 in, 2000 psi, Material Construction: Stainless Steel, Dimensions: 2.16 in L x 1 in W x 1 in H, Dimension Standards: ISO 6150 Series B, -40 to 250 deg F

Connection Size 1	:	1/4 in
Connection Size 2	:	1/4 in
Connection Type 1	:	Quick Disconnect
Connection Type 2	:	NPTF
Dimension Standards	:	ISO 6150 Series B
Dimensions	:	2.16 in L x 1 in W x 1 in H
Gender 1	:	Female
Gender 2	:	Male
Hex Size	:	0.69 in
Material	:	Stainless Steel
Material Construction	:	Stainless Steel
Pressure Rating	:	2000 psi
Series	:	1000
Shape	:	Coupling
Temperature Rating	:	-40 to 250 deg F
Thread Size 2	:	1/4-18

Eaton 1000 Series industrial interchange pneumatic coupling that is rugged and reliable designed for use with compressed air, gases and liquids.

Ball lock design
Manual operation
Non-interchangeable design prevents crossing of lines
Sleeves are color coded to identify each Series - Series 600 sleeves are green for oxygen, Series 700 sleeves are red for acetylene
Series 600 and 700 couplings can also be used with compressed air and other gases
Sockets with SL suffix have the sleeve lock feature to prevent accidental disconnection
Series 600 and 700 couplings with sleeve lock feature comply with OSHA requirements, which state couplings shall be the type that cannot be unlocked or disconnected by means of a straight pull without rotary motion
Ball latching mechanism
All sizes accept US industrial interchange
Buna-N seal material

Applications: General pneumatics, construction, industrial plants
