Hansen™ and Gromelle™ 2HIL11 2HIL11

Hansen™ and Gromelle™ 2HIL11

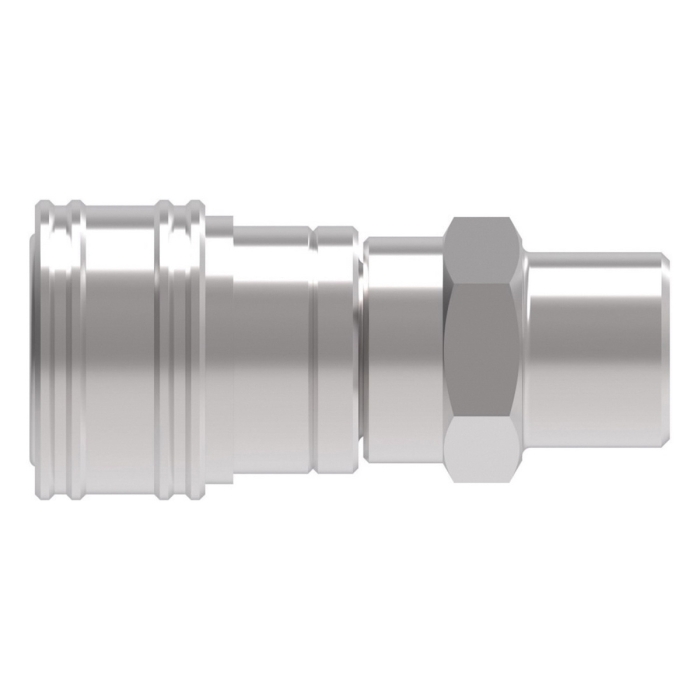

Hansen™ and Gromelle™ 2HKIL Stainless Steel Straight Ball Lock Coupling with 2-Way Valve, 1/4 in Female Quick Disconnect x 3/8 in FNPTF

  • Manufacturer: Danfoss Power Solutions
  • Brand: Hansen™ and Gromelle™
  • ARGPN: 2HIL11
  • MPN: 2HIL11
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Danfoss Power Solutions factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Hansen™ and Gromelle™ Straight Ball Lock Coupling with 2-Way Valve, Series: 2HKIL, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18, Hex Size: 0.81 in, 5000 psi, Material Construction: Stainless Steel, Dimensions: 2.18 in L x 1.06 in W x 1.06 in H, -40 to 250 deg F

Connection Size 1      :      1/4 in
Connection Size 2      :      3/8 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimensions      :      2.18 in L x 1.06 in W x 1.06 in H
Gender 1      :      Female
Gender 2      :      Female
Hex Size      :      0.81 in
Material      :      Stainless Steel
Material Construction      :      Stainless Steel
Pressure Rating      :      5000 psi
Series      :      2HKIL
Shape      :      Coupling
Temperature Rating      :      -40 to 250 deg F
Thread Size 2      :      3/8-18

Eaton's 2HKIL Series stainless steel couplings can be used with various liquids and gases. They are functionally identical, but do not interchange. They can be used where it is necessary to avoid crossing lines.

  • Ball lock design
  • Proprietary interchange with all stainless steel construction
  • Buna-N seal material

Applications: Chemical, military, aerospace, food and beverage

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Hansen and Gromelle_100506_CAT.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Hansen and Gromelle_2HIL11_TD.pdf
