Hansen™ and Gromelle™ LL8HP36

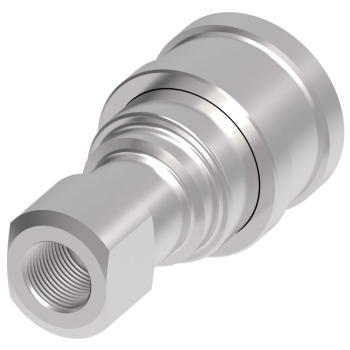

Hansen™ and Gromelle™ HK Series 303 Stainless Steel Straight Ball Lock Coupling with 2-Way Valve, 1 in Female Quick Disconnect x 1 in FNPTF

Manufacturer: Danfoss Power Solutions
Brand: Hansen™ and Gromelle™
ARGPN: LL8HP36

MPN: LL8HP36

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Add to cart

Description
Specs
Features
Documents

Hansen™ and Gromelle™ Straight Ball Lock Coupling with 2-Way Valve, Series: HK, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: 1-11-1/2, Hex Size: 1-3/4 in, 4000 psi, Material Construction: 303 Stainless Steel, Dimensions: 4.13 in L x 2.61 in W x 2.61 in H, Dimension Standards: ISO 7241-1 Series B, -40 to 250 deg F

Connection Size 1	:	1 in
Connection Size 2	:	1 in
Connection Type 1	:	Quick Disconnect
Connection Type 2	:	NPTF
Dimension Standards	:	ISO 7241-1 Series B
Dimensions	:	4.13 in L x 2.61 in W x 2.61 in H
Gender 1	:	Female
Gender 2	:	Female
Hex Size	:	1-3/4 in
Material	:	Stainless Steel
Material Construction	:	303 Stainless Steel
Pressure Rating	:	4000 psi
Series	:	HK
Shape	:	Coupling
Temperature Rating	:	-40 to 250 deg F
Thread Size 2	:	1-11-1/2

Eaton HK Series stainless steel is a general-purpose industrial interchange coupling available in valved designs, offered in 303 grades of stainless steel for excellent corrosion-resistance in rugged applications. The HK Series features a ball latch mechanism with automatic self-sealing poppet valves.

303 stainless steel construction for greater corrosion resistance and fluid compatibility
Self-sealing poppet valve design provides excellent high and low pressure sealing
Sleeve lock safety mechanism
Buna-N seal material

Applications: Agriculture, hydraulic tool, general industry, construction, fluid transfer, chemical, oil and gas, transportation, food and beverage, trucks and nuclear
