Hydraulics™ 9S8F8-P8 9S8F8-P8

Hydraulics™ 9S8F8-P8

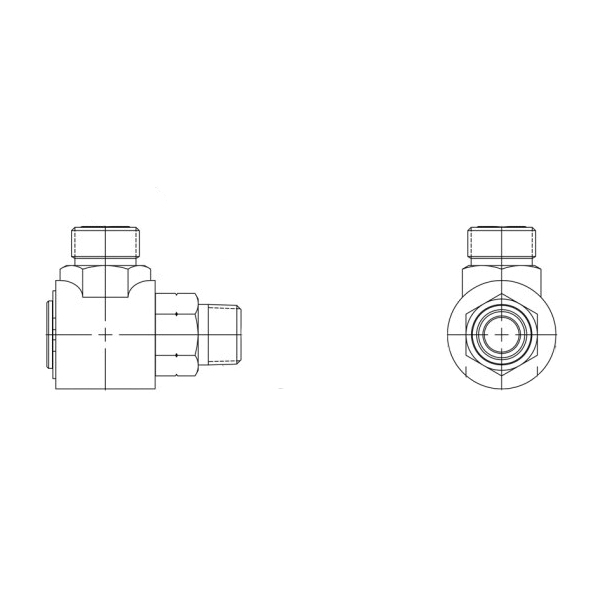

Hydraulics™ 9S Series Zinc-Plated Carbon Steel 90 deg Pressure Balanced Swivel, 1/2 in Male ORFS x 1/2 in MNPTF

  • Manufacturer: Hydraulics Inc
  • Brand: Hydraulics™
  • ARGPN: 9S8F8-P8
  • MPN: 9S8F8-P8
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Hydraulics™ 90 deg Pressure Balanced Swivel, Series: 9S, Connection Type 1: ORFS, Gender 1: Male, Connection Size 1: 1/2 in, Thread Size 1: 13/16-16, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1.13 x 1 in, 5000 psi, Material Construction: Carbon Steel, Finish: Zinc-Plated, Dimensions: 2.83 in W x 2.12 in H, -30 to 250 deg F

Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Connection Type 1      :      ORFS
Connection Type 2      :      NPTF
Dimensions      :      2.83 in W x 2.12 in H
Finish      :      Zinc-Plated
Gender 1      :      Male
Gender 2      :      Male
Hex Size      :      1.13 x 1 in
Material      :      Steel
Material Construction      :      Carbon Steel
Pressure Rating      :      5000 psi
Series      :      9S
Shape      :      Swivel Fitting
Temperature Rating      :      -30 to 250 deg F
Thread Size 1      :      13/16-16
Thread Size 2      :      1/2-14

The "9S" Series swivels represent one of the most complete range of sizes and configurations available to industry. This Series has been redesigned to incorporate a one piece barrel arrangement thus eliminating the need for braze joints. These swivels are pressure balanced with operating pressures up to 5000 psi. All configurations are designed with a 4:1 safety factor and include RoHS compliant zinc plating.

  • Protective treatment - zinc plating with yellow chromate RoHS compliant finish
  • One-piece investment cast barrel - no braze joint
  • Standard O-ring and back-up ring - field replaceable seal kits
  • Burnished barrel bore for extended seal life
  • Recessed and protected dust seals
  • Pressure balanced for low rotational torque
  • Heavy-duty retainer ring
  • Excellent flow characteristics
