Hydraulics™ HS20J20-JF20 HS20J20-JF20

Hydraulics™ HS20J20-JF20

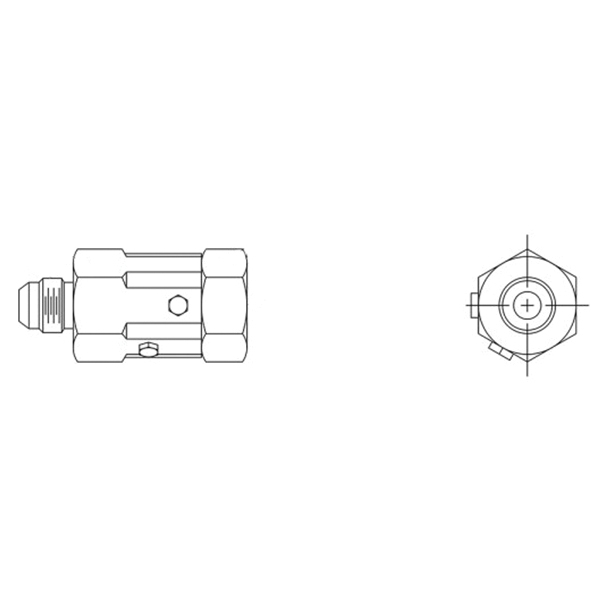

Hydraulics™ HS Series Zinc-Plated Carbon Steel Heavy-Duty In-Line Swivel, 1-1/4 in Male 37 deg JIC Flare x 1-1/4 in Female 37 deg JIC Flare

  • Manufacturer: Hydraulics Inc
  • Brand: Hydraulics™
  • ARGPN: HS20J20-JF20
  • MPN: HS20J20-JF20
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Hydraulics™ Heavy-Duty In-Line Swivel, Series: HS, Connection Type 1: 37 deg JIC Flare, Gender 1: Male, Connection Size 1: 1-1/4 in, Thread Size 1: 1-5/8-12, Connection Type 2: 37 deg JIC Flare, Gender 2: Female, Connection Size 2: 1-1/4 in, Thread Size 2: 1-5/8-12, Hex Size: 2-1/4 x 2 in, 4000 psi, Material Construction: Carbon Steel, Finish: Zinc-Plated, Dimensions: 3.66 in W, -30 to 250 deg F

Connection Size 1      :      1-1/4 in
Connection Size 2      :      1-1/4 in
Connection Type 1      :      37 deg JIC Flare
Connection Type 2      :      37 deg JIC Flare
Dimensions      :      3.66 in W
Finish      :      Zinc-Plated
Gender 1      :      Male
Gender 2      :      Female
Hex Size      :      2-1/4 x 2 in
Material      :      Steel
Material Construction      :      Carbon Steel
Pressure Rating      :      4000 psi
Series      :      HS
Shape      :      Swivel Fitting
Temperature Rating      :      -30 to 250 deg F
Thread Size 1      :      1-5/8-12
Thread Size 2      :      1-5/8-12

The "HS" Series in-line swivel was introduced in 2010 to offer expanded performance over the standard "S" Series in-line swivel. This heavy-duty in-line swivel is designed to operate at pressures up to 5000 psi with a 4:1 safety factor. An improved bearing design along with dual ball races, higher strength alloy steel and other design features allow the "HS" Series to achieve extremely long life and operate in severe applications.

  • Through hardened alloy steel barrel and stem
  • Large wear surface for angular deflection and low rotational torque
  • Improved bearing design greatly extends useful life
  • Dual race design improves resistance to side loads
  • Permanently lubricated bearing
  • Chrome retainer balls
  • Standard O-ring and back-up ring - field replaceable
  • Burnished barrel bore for extended seal life
  • Low pressure drop
  • Protective treatment - zinc plating with yellow chromate RoHS compliant finish
