Latrobe Foundry AL45L125 AL45L125

Latrobe Foundry AL45L125

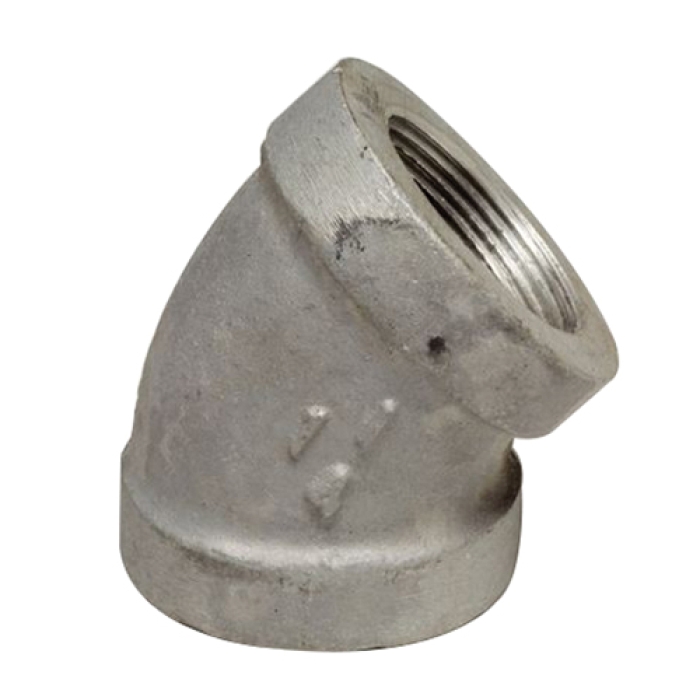

Latrobe Foundry AL45L125 356-F Aluminum 45 deg Short Radius Elbow, 1-1/4 in NPT

  • Manufacturer: Latrobe Foundry Machine & Supply
  • Brand: Latrobe Foundry
  • ARGPN: AL45L125
  • MPN: AL45L125
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Latrobe Foundry 45 deg Short Radius Elbow, Connection Type 1: NPT, Connection Size 1: 1-1/4 in, Thread Size 1: 1-1/4-11-1/2, Connection Type 2: NPT, Connection Size 2: 1-1/4 in, Thread Size 2: 1-1/4-11-1/2, 150 lb, Material Construction: 356-F Aluminum, Dimension Standards: ASME B1.20.1, MIL-DTL-52618-E

Connection Size 1      :      1-1/4 in
Connection Size 2      :      1-1/4 in
Connection Type 1      :      NPT
Connection Type 2      :      NPT
Dimension Standards      :      ASME B1.20.1, MIL-DTL-52618-E
Material      :      Aluminum
Material Construction      :      356-F Aluminum
Pressure Rating      :      150 lb
Shape      :      45 deg Elbow
Thread Size 1      :      1-1/4-11-1/2
Thread Size 2      :      1-1/4-11-1/2
  • Fittings are right hand threaded
  • The fittings have a general conformance with dimensional standard MIL-DTL-52618-E
  • Fittings are random tested at 120 lb of air pressure under water, for a normal surface condition rating of 150 lb of pressure
  • Individual fittings are not marked with alloy or pressure data
  • Fittings are not anodized
  • All threaded elbows are short radius
