Legend Valve 101-531

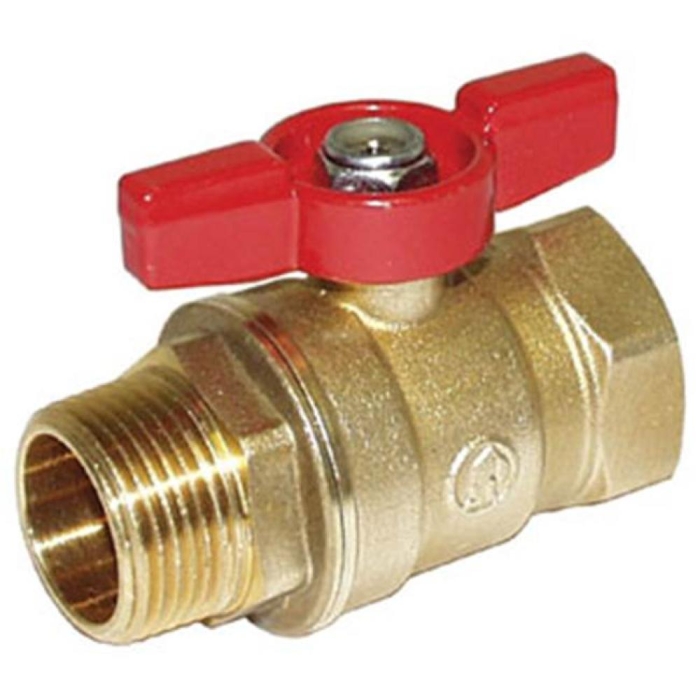

1/4" T-900 Forged Brass Ball Valve, MNPT x FNPT Tee Handle

Legend Valve Ball Valve, 1/4 in Nominal, MNPT x FNPT Connection, L Port, 600 psi, 1.95 in Inlet to Outlet Length, 1.06 in Top to Inlet Center, T-Handle Operator, 7.63 Cv Flow Coefficient (Cv), Material Standard: ASTM B124 UNS C37700, ASTM A510 UNS G10060, Brass Body, TFM PTFE Seat, Brass Stem, Steel Handle, Brass Ball, Fluorocarbon Softgoods, Additional Information: T-900 Model

Additional Information	:	T-900 Model
Ball Material	:	Brass
Body Material	:	Brass
Connection Type	:	MNPT x FNPT
Flow Coefficient (Cv)	:	7.63 Cv
Handle Material	:	Steel
Inlet to Outlet Length	:	1.95 in
Material Standard	:	ASTM B124 UNS C37700, ASTM A510 UNS G10060
Nominal Size	:	1/4 in
Operator Type	:	T-Handle
Port Type	:	L
Pressure Rating	:	600 psi
Seat Material	:	TFM PTFE
Softgoods Material	:	Fluorocarbon
Stem Material	:	Brass
Top to Inlet Center	:	1.06 in

Durable forged brass construction|Space-saving male by female end connections are ideal for confined piping installations|T-handle equipped models can be used as gauge-cock isolation valves, without the gauge face obstruction associated with a lever-handle equipped valve|Bottom loaded blowout-proof stem is a maintenance-free, dual O-ring seal design, eliminating the need to tighten a packing nut|Improved 3M Dyneon TFM PTFE seats and thrust washers provide enhanced sealing and isolation between the body and ball stem handle rotating assembly

• Specification Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/LEG-T-900MxF-T.pdf
