Legend Valve 104-301

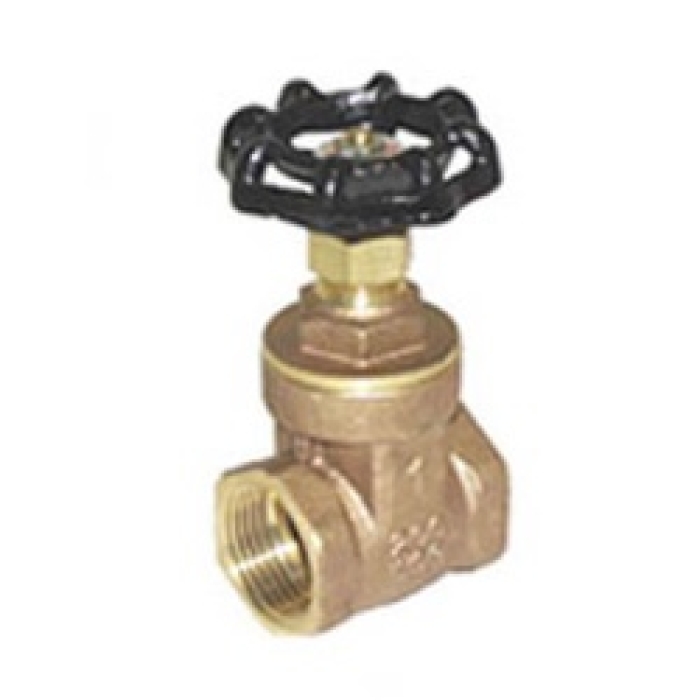

1/4" T-401 Brass Gate Valve

Legend Valve Gate Valve, 1/4 in Nominal, IPS Connection, 200 psi, 1.61 in Inlet to Outlet Length, 2.76 in Top to Inlet Center, Brass Body, Brass Stem, Buna-N Packing, Iron Handle, Handwheel Operator, ASTM B16 UNS C36000, ASTM A48 Class 35, ASTM B584 UNS C85700 Material Standard, Additional Information: T-401 Model

Additional Information	:	T-401 Model
Body Material	:	Brass
Connection Type	:	IPS
Handle Material	:	Iron
Inlet to Outlet Length	:	1.61 in
Material Standard	:	ASTM B16 UNS C36000, ASTM A48 Class 35, ASTM B584 UNS C85700
Nominal Size	:	1/4 in
Operator Type	:	Handwheel
Packing Material	:	Buna-N
Pressure Rating	:	200 psi
Stem Material	:	Brass
Top to Inlet Center	:	2.76 in

Durable, all brass body construction and heavy cast iron handwheel|Electric induction furnace casting process optimizes molten brass temperatures, resulting in superior cast body and bonnet components|Inserted bonnet with large stem packing and forged packing nut|Full flow waterway reduces pressure drop, permitting consistent flow|Non-rising stem design is compact and reliable|Solid, fully guided disc wedge opens completely out of the flow path|Integral seats are precision ground to match each disc wedge

• Specification Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/LEG-T-401.pdf
