McKissick® TERMINATOR® S-421T Painted Steel Complete Wedge Socket Kit, 5/8 in

  • Manufacturer: Crosby Group
  • Brand: McKissick®
  • ARGPN: 1035018
  • MPN: 1035018
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

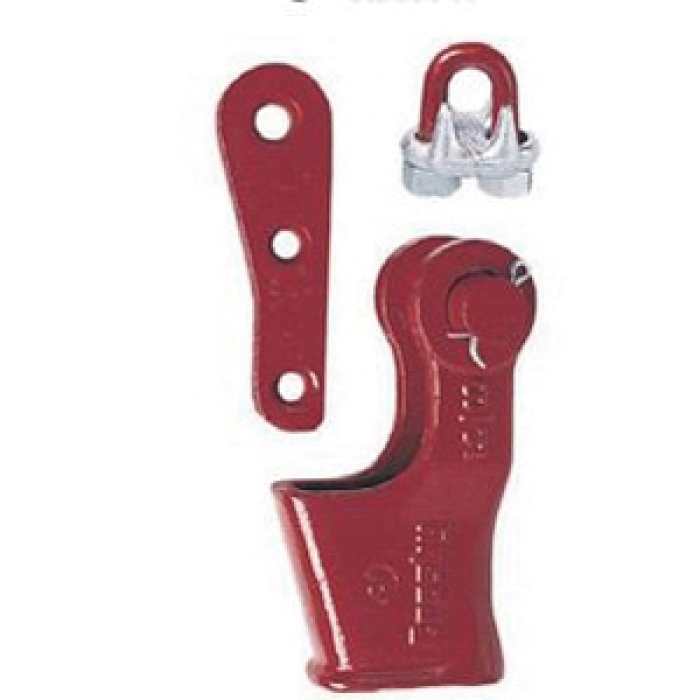

McKissick® TERMINATOR® Complete Wedge Socket Kit, Series: S-421T, Socket Size: 5/8 in, 10-3/4 in OAL, Material Construction: Steel, Finish: Painted, Includes: Socket, Wedge, Pin and Wire Rope Clip

Finish      :      Painted
Includes      :      Socket, Wedge, Pin and Wire Rope Clip
Material      :      Steel
Material Construction      :      Steel
Overall Length      :      10-3/4 in
Product Type      :      Wedge Socket Kit
Series      :      S-421T
Socket Size      :      5/8 in
Sub Brand      :      TERMINATOR®
  • Wedge socket terminations have an efficiency rating of 80%, based on the catalog strength of XXIP wire rope
  • Basket is cast steel and individually magnetic particle inspected
  • Pin diameter and jaw opening allows wedge and socket to be used in conjunction with closed swage and spelter sockets
  • Secures the tail or "dead end" of the wire rope to the wedge, thus eliminates loss or "punch out" of the wedge
  • Eliminates the need for an extra piece of rope and is easily installed
  • The TERMINATOR™ wedge eliminates the potential breaking off of the tail due to fatigue
  • The tail, which is secured by the base of the clip and the wedge, is left unreformed
  • Incorporates Crosby's patented Quic-Check® "Go" and "No-Go" feature cast into the wedge
  • The wire rope should pass thru the "Go" hole in the wedge
  • The wire rope should not pass thru the "No-Go" hole in the wedge
  • Utilizes standard Crosby® Red-U-Bolt® wire rope clip
  • The 3/8 through 1-1/8 standard S-421 wedge socket can be retrofitted with the new style TERMINATOR™ wedge
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Crosby_1004331_CAT.pdf
  • pdfCut sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/McKissick_1035000_SS.pdf
  • pdfInstallation Instructions https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/McKissick_1035018_II.pdf
