MIDLAND INDUSTRIES 20048

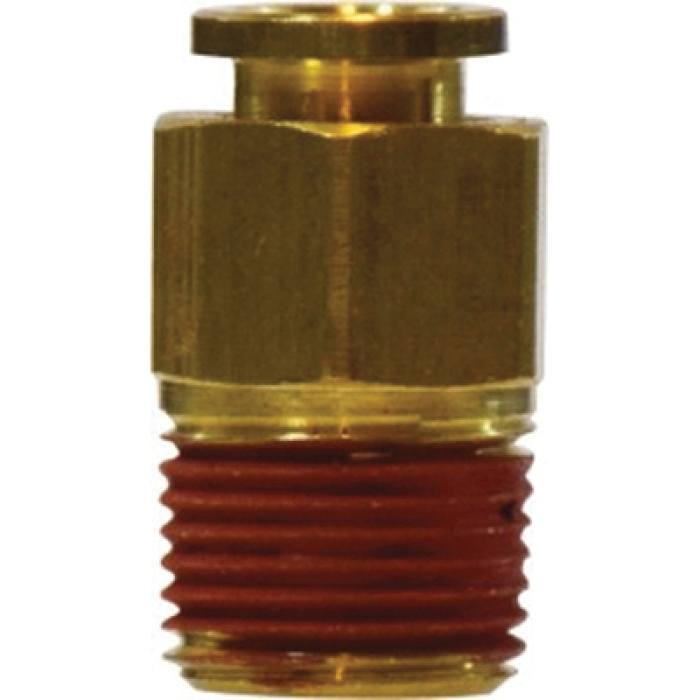

MIDLAND INDUSTRIES 20048 Brass Straight Connector, 1/8 in Push-to-Connect x 1/8 in MNPTF

Manufacturer: Midland Industries
Brand: MIDLAND INDUSTRIES
ARGPN: PCB68-2-2

MPN: 20048

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Available for Midland Industries factory-direct delivery:
Add to cart

Description
Specs
Features
Documents

MIDLAND INDUSTRIES Straight Connector, Connection Type 1: Push-to-Connect, Connection Size 1: 1/8 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/8 in, Hex Size: 0.43 in, Material Construction: Brass, -10 to 200 deg F

California residents see Prop 65 WARNINGS

Connection Size 1	:	1/8 in
Connection Size 2	:	1/8 in
Connection Type 1	:	Push-to-Connect
Connection Type 2	:	NPTF
Gender 2	:	Male
Hex Size	:	0.43 in
Material	:	Brass
Material Construction	:	Brass
Shape	:	Straight Connector
Temperature Rating	:	-10 to 200 deg F

Quick-connect, simply push tubing in, no tools, saves up to 75% of assembly time of standard compression fittings
Quick-disconnect, hold two fingers on insert and pull tubing out, no tools required
Reusable, connect and disconnect numerous times
Full flow design, provides up to 60% more flow area than conventional fittings with internal tube supports
Positive seal, no leaks, after tubing is inserted, seal is made
Secure tube retention, pulling on tubing only serves to tighten the connection
Self contained assembly, no loose parts, brass body and insert
NPTF with Teflon®-based sealant pre-applied
Straight connectors have interior hex for Allen key tightening where space is limited, no need to use a wrench
