MIDLAND INDUSTRIES 20108

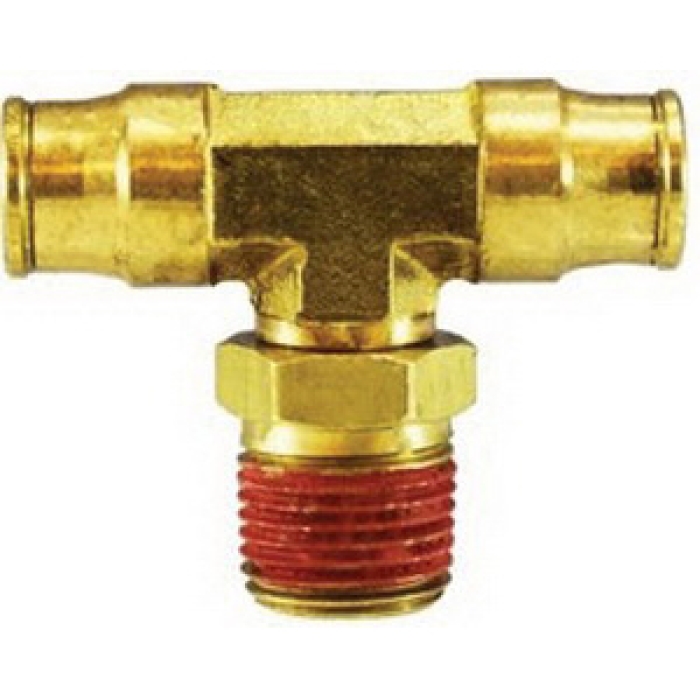

MIDLAND INDUSTRIES 20108 Brass Male Branch Tee, 3/8 in Push-to-Connect x 3/8 in Push-to-Connect x 3/8 in MNPTF

Manufacturer: Midland Industries
Brand: MIDLAND INDUSTRIES
ARGPN: PCB72S-6-6

MPN: 20108

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Available for Midland Industries factory-direct delivery:
Add to cart

Description
Specs
Features
Documents

MIDLAND INDUSTRIES Branch Tee, Connection Type 1: Push-to-Connect, Connection Size 1: 3/8 in, Connection Type 2: Push-to-Connect, Connection Size 2: 3/8 in, Connection Type 3: NPTF, Gender 3: Male, Connection Size 3: 3/8 in, Hex Size: 0.69 in, 290 psi, Material Construction: Brass, -10 to 200 deg F

California residents see Prop 65 WARNINGS

Connection Size 1	:	3/8 in
Connection Size 2	:	3/8 in
Connection Size 3	:	3/8 in
Connection Type 1	:	Push-to-Connect
Connection Type 2	:	Push-to-Connect
Connection Type 3	:	NPTF
Gender 3	:	Male
Hex Size	:	0.69 in
Material	:	Brass
Material Construction	:	Brass
Pressure Rating	:	290 psi
Shape	:	Tee
Temperature Rating	:	-10 to 200 deg F

Quick connect, simply push tubing in, no tools
Saves up to 75% of assembly time compared to standard air compression fittings
Quick disconnect, hold two fingers on insert and pull tubing out, no tools required
Reusable, connect and disconnect numerous times
Full flow design, provides up to 60% more flow area than conventional fittings with internal tube supports
Positive seal, no leaks
After tubing is inserted, seal is made
Versatile, Buna-N O-rings standard
Secure tube retention, pulling on tubing only serves to tighten the connection
Self contained assembly, no loose parts, brass body and insert
Pre-applied Teflon® based pipe sealant on all male pipe threads, saving customer additional labor
