MIDLAND INDUSTRIES 621000

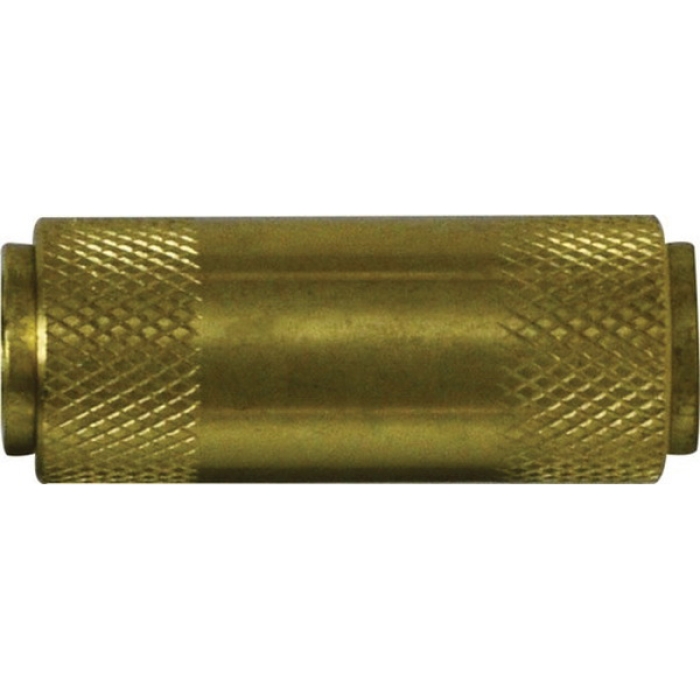

MIDLAND INDUSTRIES 621000 Brass Union, 5/8 in Push-to-Connect

Manufacturer: Midland Industries
Brand: MIDLAND INDUSTRIES
ARGPN: PCN62-10

MPN: 621000

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Available for Midland Industries factory-direct delivery:
Add to cart

Description
Specs
Features
Documents

MIDLAND INDUSTRIES Union, Connection Type 1: Push-to-Connect, Connection Size 1: 5/8 in, Connection Type 2: Push-to-Connect, Connection Size 2: 5/8 in, 150 psi, Material Construction: Brass, Dimension Standards: SAE J1131, -40 to 140 deg F

California residents see Prop 65 WARNINGS

Connection Size 1	:	5/8 in
Connection Size 2	:	5/8 in
Connection Type 1	:	Push-to-Connect
Connection Type 2	:	Push-to-Connect
Dimension Standards	:	SAE J1131
Material	:	Brass
Material Construction	:	Brass
Pressure Rating	:	150 psi
Shape	:	Union
Temperature Rating	:	-40 to 140 deg F

DOT Fittings are constructed with an all brass captive eyelet which allows for maximum flow. The brass captive eyelet with extended length is floating and has a machined top end radius for easy installation of tubing. All male threads have a pre-applied Teflon®-based pipe sealant to provide for easy assembly and leak proof seal.

Fast assembly, no tools required
Simply push tubing in, saves up to 75% of assembly time compared to standard air compression fittings
No loose parts to handle
Fast disconnect, hold the collet collar with two fingers and pull out tube, no tools required
Reusable, can be connected and disconnected several times
Reliable sealing, using recommended tubing, full sealing is guaranteed
Buna-N O-ring standard
Pre-applied Teflon® based pipe sealant on all male pipe threads, saving customer additional labor
Full flow design, provides more flow area
