MIDLAND INDUSTRIES 680421

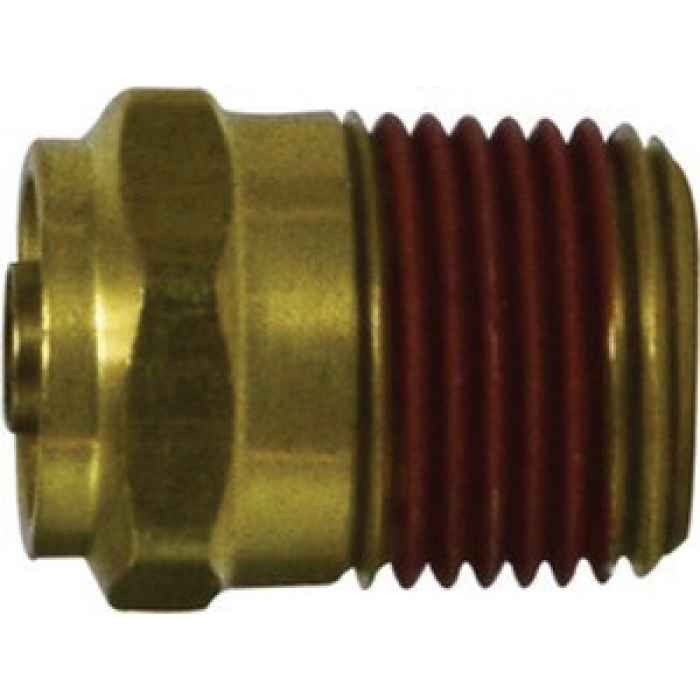

MIDLAND INDUSTRIES 680421 Brass Connector, 1/4 in Push-to-Connect x 1/16 in MNPTF

Manufacturer: Midland Industries
Brand: MIDLAND INDUSTRIES
ARGPN: PCD68-4-1

MPN: 680421

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Available for Midland Industries factory-direct delivery:
Add to cart

Description
Specs
Features
Documents

MIDLAND INDUSTRIES Connector, Connection Type 1: Push-to-Connect, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/16 in, 150 psi, Material Construction: Brass, Dimension Standards: SAE J1131, -40 to 200 deg F

California residents see Prop 65 WARNINGS

Connection Size 1	:	1/4 in
Connection Size 2	:	1/16 in
Connection Type 1	:	Push-to-Connect
Connection Type 2	:	NPTF
Dimension Standards	:	SAE J1131
Gender 2	:	Male
Material	:	Brass
Material Construction	:	Brass
Pressure Rating	:	150 psi
Shape	:	Connector
Temperature Rating	:	-40 to 200 deg F

D.O.T. fittings are constructed with an all brass captive eyelet which allows for maximum flow. The brass captive eyelet with extended length is floating and has a machined top end radius for easy installation of tubing. All male threads have a pre-applied Teflon®-based pipe sealant to provide for easy assembly and leak proof seal.

Fast assembly, no tools required
Simply push tubing in, saves up to 75% of assembly time compared to standard air compression fittings
No loose parts to handle
Fast disconnect, hold the collet collar with two fingers and pull out tube, no tools required
Reusable, can be connected and disconnected several times
Reliable sealing, using recommended tubing, full sealing is guaranteed
Buna-N O-ring standard
Pre-applied Teflon® based pipe sealant on all male pipe threads, saving customer additional labor
Full flow design, provides more flow area
