MIDLAND INDUSTRIES 691006

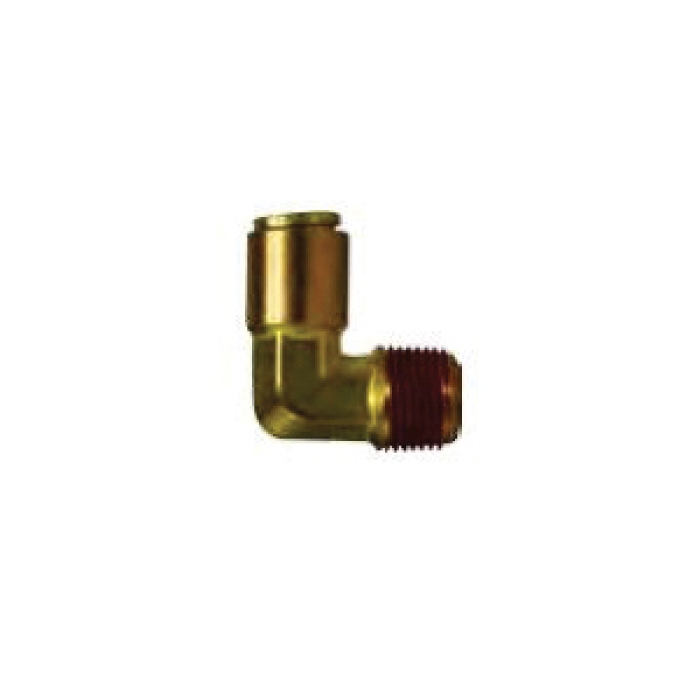

MIDLAND INDUSTRIES 691006 Forged Brass 90 deg Elbow, 5/8 in Push-In x 3/8 in MNPTF

Manufacturer: Midland Industries
Brand: MIDLAND INDUSTRIES
ARGPN: PCD69-10-6

MPN: 691006

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Available for Midland Industries factory-direct delivery:
Add to cart

Description
Specs
Features
Documents

MIDLAND INDUSTRIES 90 deg Elbow, Connection Type 1: Push-In, Connection Size 1: 5/8 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 3/8 in, 150 psi, Material Construction: Forged Brass, -40 to 200 deg F

California residents see Prop 65 WARNINGS

Connection Size 1	:	5/8 in
Connection Size 2	:	3/8 in
Connection Type 1	:	Push-In
Connection Type 2	:	NPTF
Gender 2	:	Male
Material	:	Brass
Material Construction	:	Forged Brass
Pressure Rating	:	150 psi
Shape	:	90 deg Elbow
Temperature Rating	:	-40 to 200 deg F

DOT Fittings are constructed with an all brass captive eyelet which allows for maximum flow. The brass captive eyelet with extended length is floating and has a machined top end radius for easy installation of tubing. All male threads have a pre-applied Teflon®-based pipe sealant to provide for easy assembly and leak-proof seal.

Simply push tubing in, no tools required
Saves up to 75% of assembly time compared to standard air compression fittings
No loose parts to handle
Hold the collet collar with two fingers and pull out tube
Can be connected and disconnected several times
Using recommended tubing, full sealing is guaranteed
Buna-N O-ring standard
Secure tube retention
Pulling on tubing only serves to tighten the connection
Pre applied Teflon based pipe sealant on all male pipe threads, saving customer additional labor
