MIDLAND INDUSTRIES 940171L

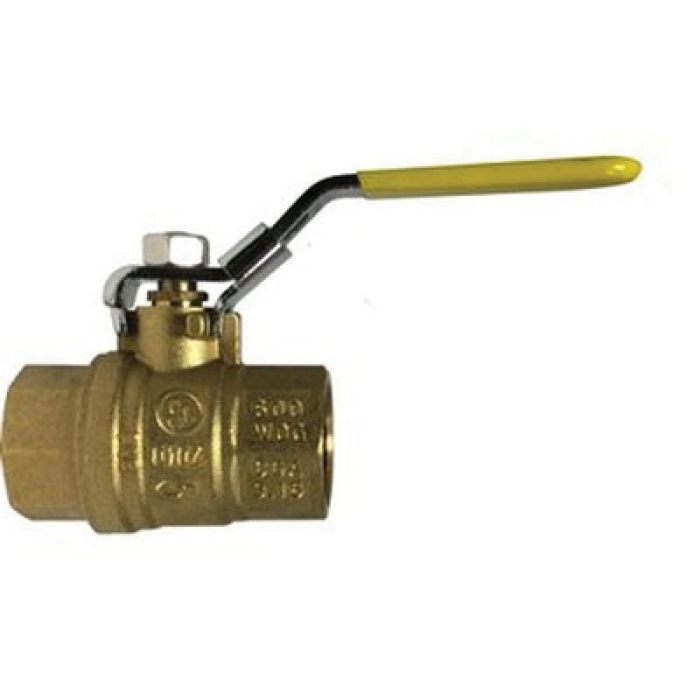

MIDLAND INDUSTRIES 940171L Hard Chrome-Plated Forged Brass Full-Port Locking Ball Valve, 1/4 in NPT, 600 psi
- Manufacturer: Midland Industries
- Brand: MIDLAND INDUSTRIES
- ARGPN: VLV153-6
- MPN: 940171L
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Midland Industries factory-direct delivery:
-
MIDLAND INDUSTRIES Full-Port Locking Ball Valve, Nominal Size: 1/4 in, Connection Type: NPT, Actuator Type: Lever, Material Construction: Forged Brass, Brass Ball and Stem, PTFE Seat Trim, PTFE Seal, Finish: Hard Chrome-Plated, 1.73 in Length, -22 to 302 deg F, 600 psi
California residents see Prop 65 WARNINGS
| Actuator Type | : | Lever |
| Connection Type | : | NPT |
| Finish | : | Hard Chrome-Plated |
| Length | : | 1.73 in |
| Material | : | Brass |
| Material Construction | : | Forged Brass |
| Nominal Size | : | 1/4 in |
| Pressure Rating | : | 600 psi |
| Product Type | : | Ball Valve |
| Seal Material | : | PTFE |
| Temperature Rating | : | -22 to 302 deg F |
| Trim Material | : | Brass Ball and Stem, PTFE Seat |
- Minimal pressure drop due to large full size ports
- Bottom loaded pressure retaining stem
- Pressure-rated for 1/4-2 in at 600 psi and 2-1/2-4 in at 400 psi WOG (non-shock) and 150 WSP saturated steam
- Virgin PTFE stem packing seal, thrust washer and seats
- Yellow vinyl insulator on heavy-duty-plated carbon steel handles
- Fast 1/4 turn open or close operation
- Not lead-free
- Good for gasoline
- Low operating torque
- Adjustable stem packing gland
- Each value is individually tested
- Bottom entry blowout-proof stem
- Deeper threads for better connection
Applications: For hydraulic and pneumatic application
