Prevost® RPD MG4126

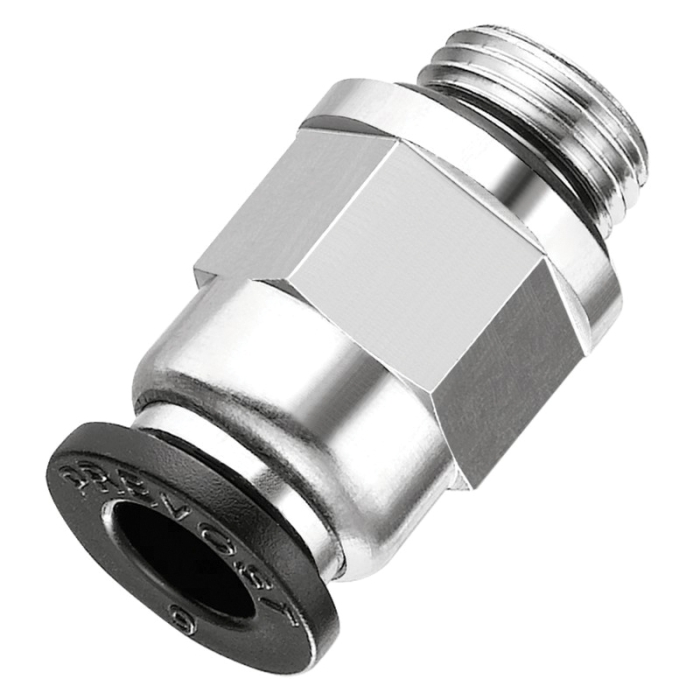

Prevost® RPD MG Nickel-Plated Brass/Polymer Straight Connector, 1/4 in Push-to-Connect x #10 Male Threaded

Manufacturer: Prevost
Brand: Prevost®
ARGPN: PCC68-4-0

MPN: RPD MG4126

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Available for Prevost factory-direct delivery:
Add to cart

Description
Specs
Documents
Videos

Prevost® Straight Connector, Series: RPD MG, Connection Type 1: Push-to-Connect, Connection Size 1: 1/4 in, Connection Type 2: Threaded, Gender 2: Male, Connection Size 2: #10, Thread Size 2: 10-32 UNF, 0 - 145 psi, Material Construction: Brass/Polymer, Finish: Nickel-Plated, Dimensions: 0.945 in L x 0.157 in W, 32 - 140 deg F, For Use With: 1/4 in OD Tubing

Connection Size 1	:	1/4 in
Connection Size 2	:	#10
Connection Type 1	:	Push-to-Connect
Connection Type 2	:	Threaded
Dimensions	:	0.945 in L x 0.157 in W
Finish	:	Nickel-Plated
For Use With	:	1/4 in OD Tubing
Gender 2	:	Male
Material	:	Brass
Material Construction	:	Brass/Polymer
Pressure Rating	:	0 - 145 psi
Series	:	RPD MG
Shape	:	Straight Connector
Temperature Rating	:	32 - 140 deg F
Thread Size 2	:	10-32 UNF
