Reelcraft® FD83075 OLP FD83075 OLP

Reelcraft® FD83075 OLP

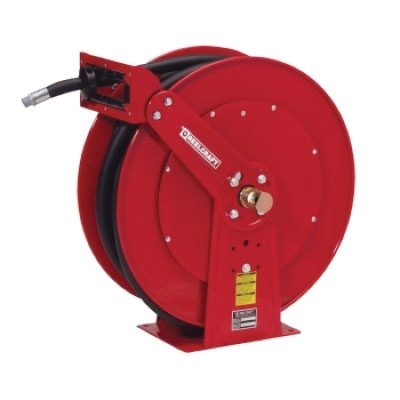

Reelcraft® Red Carbon Steel Spring Retractable Heavy-Duty Low Pressure Fuel Hose Reel, 3/4 in ID x 75 ft, 50 psi

  • Manufacturer: Reelcraft Industries
  • Brand: Reelcraft®
  • ARGPN: FD83075 OLP
  • MPN: FD83075 OLP
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Reelcraft Industries factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Reelcraft® Spring Retractable Heavy-Duty Low Pressure Fuel Hose Reel, Series: F, 75 ft Length Hose, 3/4 in Hose Inside Diameter, 1.188 in Hose Outside Diameter, Inlet Size: 3/4 in FPT in, Outlet Size: 3/4 in MPT, Winding Method: Spring Retractable, Material Construction: Carbon Steel, Finish: Powder-Coated, Red, Bench, Ceiling, Floor, Truck, Wall Mount, 150 deg F, 50 psi, Dimensions: 20-1/4 in L x 19-3/8 in W x 21 in H, Includes: Hose

California residents see Prop 65 WARNINGS

Color      :      Red
Dimensions      :      20-1/4 in L x 19-3/8 in W x 21 in H
Finish      :      Powder-Coated
Hose Inside Diameter      :      3/4 in
Hose Length      :      75 ft
Hose Outside Diameter      :      1.188 in
Includes      :      Hose
Inlet Size      :      3/4 in FPT in
Material      :      Steel
Material Construction      :      Carbon Steel
Mounting Type      :      Bench, Ceiling, Floor, Truck, Wall
Outlet Size      :      3/4 in MPT
Pressure Rating      :      50 psi
Product Type      :      Fuel Hose Reel
Series      :      F
Temperature Rating      :      150 deg F
Winding Method      :      Spring Retractable

Reelcraft®'s spring retractable fuel delivery reels, equipped with FKM seals, incorporate metal forms to insure the greatest possible strength and are ideal for mobile and permanent-mount applications. These rugged, corrosion-resistant reels are suitable for a wide variety of fuel applications including E85. Series F7000 reels are supplied with our ball-bearing style swivel.

  • Robust latching mechanism - latch and ratchet are made of heavy-duty cast aluminum with substantial surface area to limit the opportunity for premature wear
  • The full flow swivel combines the highest-grade seal design and materials with bearing areas to insure maximum service life
  • Quality finish and corrosion-resistant - individually powder-coated components along with the composite spool offers the maximum protection from premature corrosion
  • Open style

Warranty: 2 Years

Applications: For fuel applications including E85

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_4600OLP_CAT.pdf
  • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_F7900OLP_SS.pdf
  • pdfInstallation Instructions https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_FD83075OLP_II.pdf
