Reelcraft® 7850 OMP 7850 OMP

Reelcraft® 7850 OMP

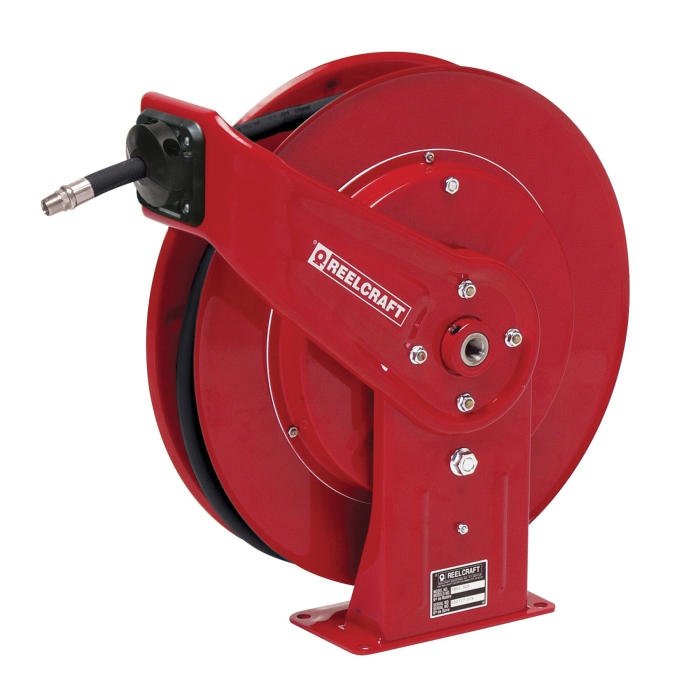

Reelcraft® 7000 Red Carbon Steel Heavy-Duty Medium-Pressure Oil Hose Reel, 1/2 in ID x 50 ft, 3000 psi

  • Manufacturer: Reelcraft Industries
  • Brand: Reelcraft®
  • ARGPN: 7850 OMP
  • MPN: 7850 OMP
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Reelcraft Industries factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Reelcraft® Heavy-Duty Medium-Pressure Oil Hose Reel, Series: 7000, 50 ft Length Hose, 1/2 in Hose Inside Diameter, 0.82 in Hose Outside Diameter, Inlet Size: 1/2 in FPT, Outlet Size: 1/2 in MPT, Winding Method: Spring Retractable, Material Construction: Carbon Steel, Finish: Powder-Coated, Red, Bench, Ceiling, Floor, Truck, Wall Mount, 210 deg F, 3000 psi, Dimensions: 20-1/4 in L x 19-3/4 in W x 7 in H, Includes: Hose

California residents see Prop 65 WARNINGS

Color      :      Red
Dimensions      :      20-1/4 in L x 19-3/4 in W x 7 in H
Finish      :      Powder-Coated
Hose Inside Diameter      :      1/2 in
Hose Length      :      50 ft
Hose Outside Diameter      :      0.82 in
Includes      :      Hose
Inlet Size      :      1/2 in FPT
Material      :      Steel
Material Construction      :      Carbon Steel
Mounting Type      :      Bench, Ceiling, Floor, Truck, Wall
Outlet Size      :      1/2 in MPT
Pressure Rating      :      3000 psi
Product Type      :      Oil Hose Reel
Series      :      7000
Temperature Rating      :      210 deg F
Winding Method      :      Spring Retractable

Reelcraft®'s Series 7000 is very robust and ideal for the most demanding applications. The reel's base and guide arm are formed from high-grade steel and engineered with structural forms and gussets to yield the greatest amount of strength. The basic reel without hose can be used for air, water or oil. Guide arm adjusts to seven positions.

  • Reinforced steel - the steel guide arm and base are stamped with ribs and gussets to insure maximum strength and lightest possible weight
  • The full flow swivel combines the highest-grade seal design and materials with bearing areas to insure maximum service life
  • The hose is plumbed into the base to eliminate the risk of undue stress on the swivel
  • Quality finish and corrosion-resistant - individually powder-coated components along with the composite spool offers the maximum protection from premature corrosion
  • Open style

Applications: For industrial, automotive service centers, transmission shops, fleet maintenance facilities, pneumatic tools, aircraft maintenance, tire stores, agriculture, service trucks and washdown

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_7850_OLP_CAT_NEW2021.pdf
  • pdfInstallation Instructions https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_7850_OLP_II.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_7850_OLP_TD.pdf
